Air cleaner (page 2 of 2)

3. Loosen clip securing hose to turbocharger inlet and release hose.
4. Plug turbocharger inlet to prevent ingress of foreign matter.
5. Loosen clip securing intake hose to air cleaner and release hose.
6. Loosen clip securing breather hose to depression limiter and release hose.
7. Disconnect multiplug from MAF sensor.
8. Remove 3 bolts securing air cleaner to battery tray.

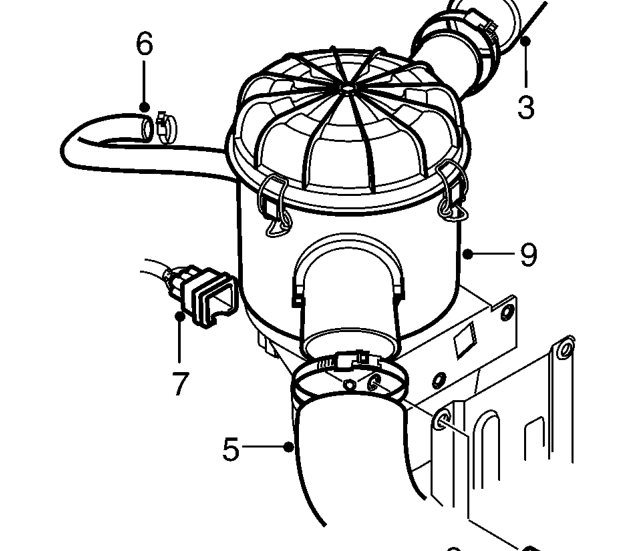

9. Remove air cleaner. Do not carry out further dismantling if component is removed for access only.

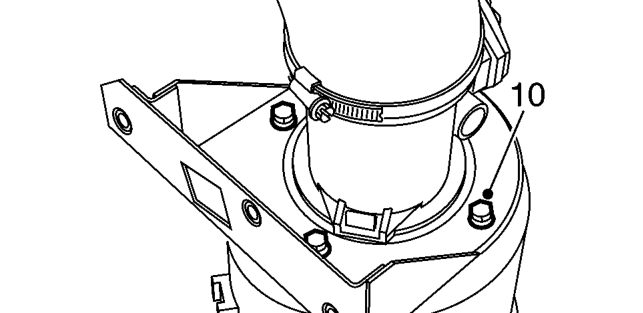

10. Remove 4 bolts securing air cleaner to mounting bracket.

Refit

1. Fit air cleaner to mounting bracket and tighten bolts.
2. Position air cleaner to vehicle and tighten bolts.
3. Connect MAF sensor multiplug.
4. Fit breather hose and tighten clip.
5. Fit intake hose and tighten clip.
6. Remove plug from turbocharger inlet, connect hose and tighten clip.
7. Fit battery. See ELECTRICAL, Repairs.
8. Fit engine acoustic cover.
