Rover 800 Workshop Manual (1996-1999)05 · Engine - diesel
05 · Engine

Cylinder head gaskets

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › Cylinder head gaskets
Engine - dieselCylinder head gaskets · page 1 of 3

CYLINDER HEAD GASKETS

Service repair no - 12.29.01

  1. Remove rocker cover gasket. See this section.
  2. Remove injectors. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
  3. Remove coolant manifold. See COOLING SYSTEM - DIESEL, Repairs.
  4. Remove exhaust and inlet manifolds. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
Cylinder head gaskets – Remove exhaust and inlet manifolds. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  1. Disconnect 4 glow plug connectors.
  2. Disconnect temperature gauge sensor lead.
Cylinder head gaskets – Disconnect temperature gauge sensor lead.

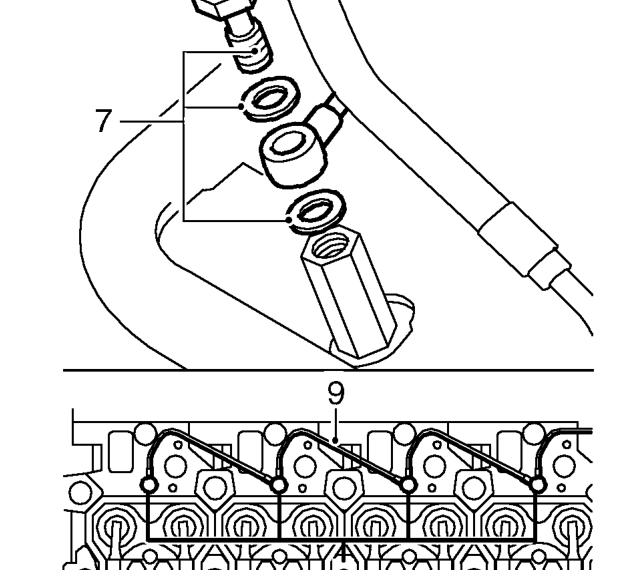

  1. Remove rocker oil feed pipe hose union banjo bolt from cylinder block adapter, discard 2 sealing washers.
  2. Remove 4 pipe union banjo bolts from cylinder heads, discard 8 sealing washers.
  3. Remove pipe.
Cylinder head gaskets – Remove pipe.

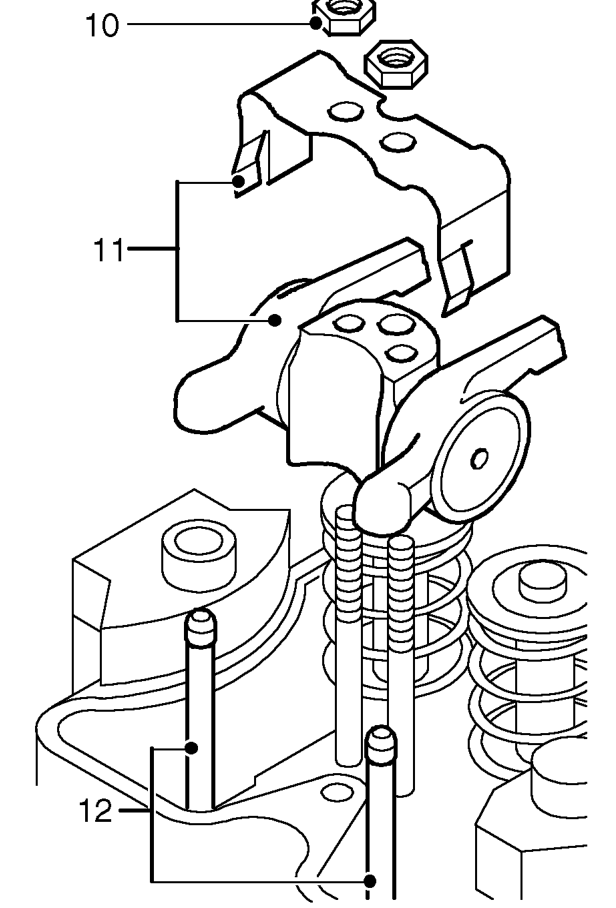

  1. Remove 8 nuts securing rocker assemblies.
  2. Remove rocker assemblies.
  3. Remove push rods.

CAUTION: Keep rocker assemblies and push rods in their fitted order.
