TIMING COVER

Service repair no - 12.65.06

Remove

  1. Remove crankshaft front oil seal. See this section.

Air conditioning

Air conditioning – Remove crankshaft front oil seal. See this section.

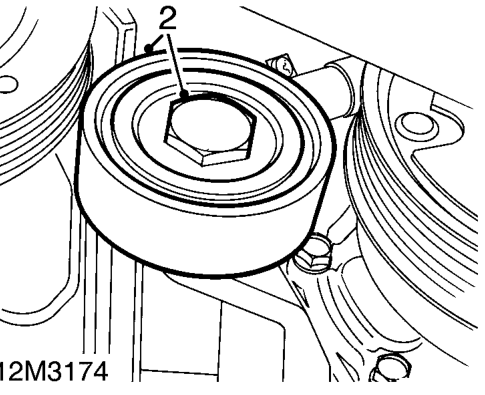

  1. Remove lower jockey pulley centre bolt and remove pulley.

NOTE: LH thread.

Air conditioning – Remove lower jockey pulley centre bolt and remove pulley.

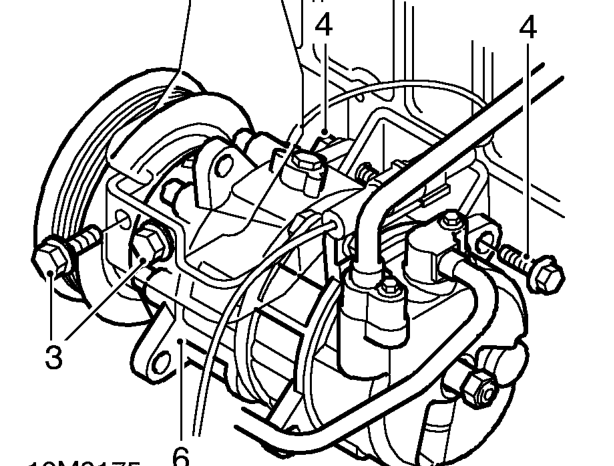

  1. Remove 2 bolts securing air conditioning compressor support bracket.
  2. Remove 4 bolts securing compressor to mounting bracket.
  3. Remove threaded plate.
  4. Release compressor from bracket and tie aside.

All models

All models – Release compressor from bracket and tie aside.

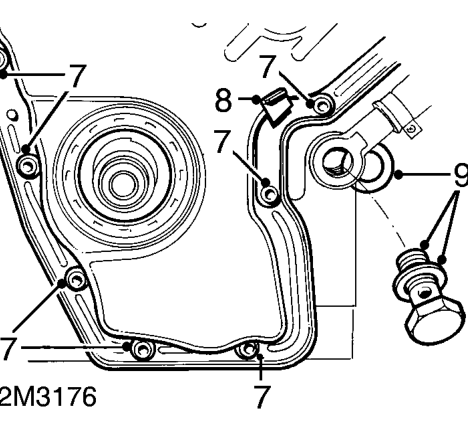

  1. Remove 7 lower screws securing timing gear cover.
  2. Remove timing pointer.
  3. Remove brake servo pipe banjo bolt and discard 2 sealing washers.
  4. Raise engine.
All models – Raise engine.

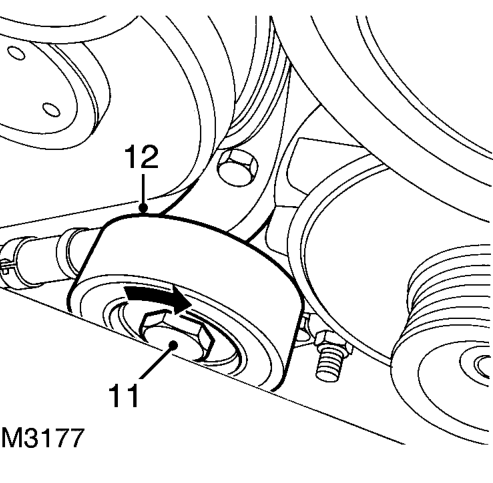

  1. Remove centre bolt from jockey pulley adjacent to alternator.

NOTE: LH thread.

  1. Remove pulley.
