Flywheel (page 2 of 2)

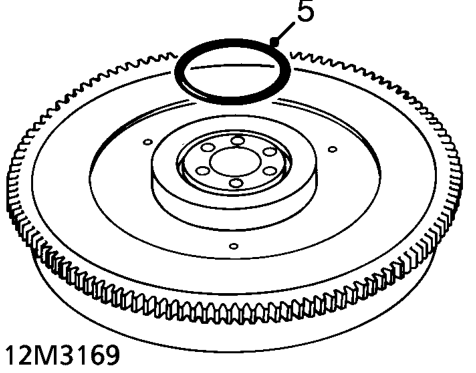

5. Remove and discard ’O’ ring from flywheel.

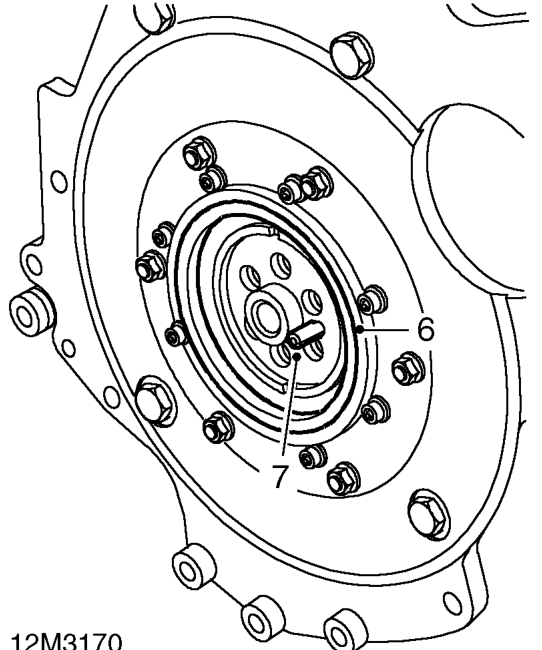

6. Remove oil seal from rear main bearing carrier.
7. Remove and discard roll pin from crankshaft.

Refit

1. Clean flywheel and end of crankshaft.
2. Clean oil seal and thrust washer recesses in rear main bearing carrier.

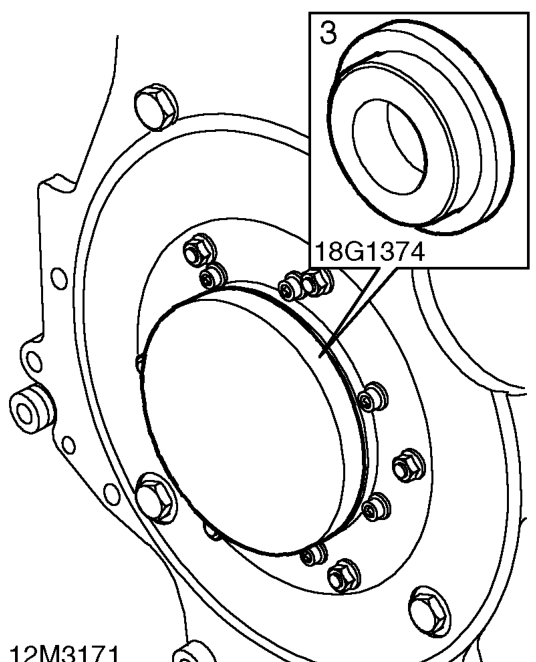

3. Lubricate oil seal and fit to rear main bearing carrier using tool 18G 1374.
4. Fit NEW roll pin to crankshaft.
5. Apply grease to ’O’ ring and fit to flywheel.
6. Apply grease to thrust washers and fit to rear main bearing carrier.
7. Fit flywheel.
8. Fit NEW flywheel bolts, and working in a diagonal sequence, tighten bolts to 20 Nm. Again working in a diagonal sequence tighten bolts a further 75°using an angular torque gauge.
9. Fit clutch assembly. See CLUTCH, Repairs.
