Camshaft

Refit

1. Clean injection pump timing gear and pump shaft.
2. Position injection pump to mounting studs.
3. Align Woodruff key on injection pump drive shaft to 11 o’clock position.
4. Position injection pump timing gear to injection pump drive shaft ensuring timing marks on gears are aligned.
5. Position injection pump support bracket and tighten bolt to 25 Nm.
6. Fit but do not tighten injection pump securing nuts.
7. Fit washer and nut securing injection pump timing gear and tighten to 88 Nm.
8. Remove crankshaft pulley nut.
9. Fit timing cover. See this section.
10. Adjust injection pump timing. See ENGINE MANAGEMENT SYSTEM - EDC, Adjustments.

CAMSHAFT

Service repair no - 12.13.02

Remove

1. Remove engine and gearbox assembly. See this section.

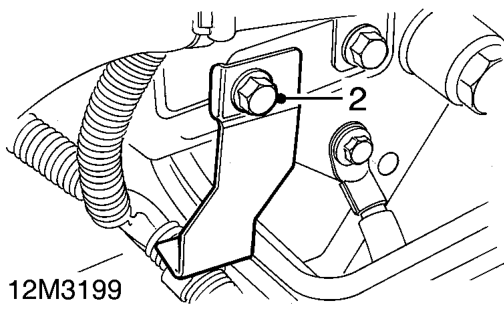

2. Remove bolt securing harness bracket to engine backplate.

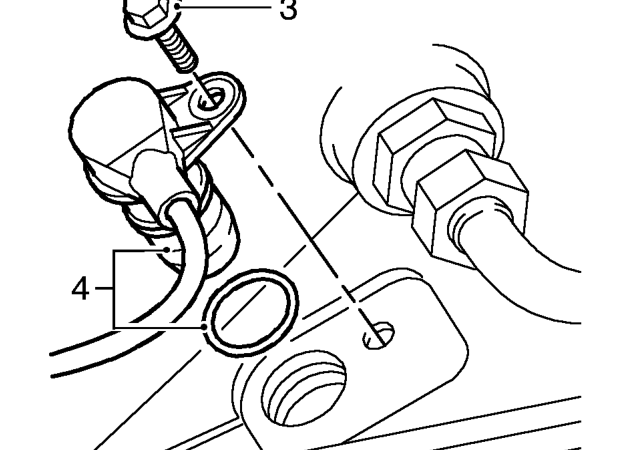

3. Remove bolt securing crankshaft sensor.
4. Release sensor from gearbox, remove and discard ’O’ ring.
