Engine - dieselFuel injection pump timing gear · page 2 of 2
Diagram

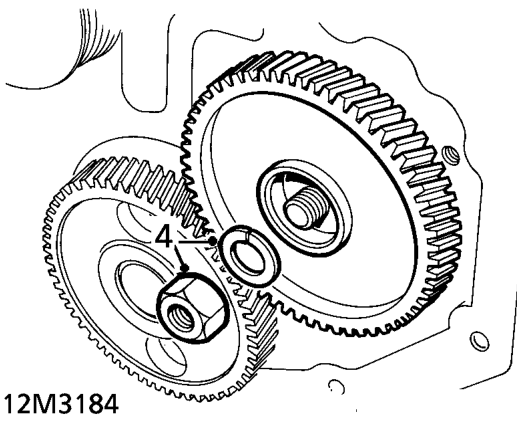

  1. Remove nut securing injection pump timing gear and remove washer.

NOTE: Ensure timing marks are still aligned.

  1. Remove tool 18G 1615-1 from 18G 1615

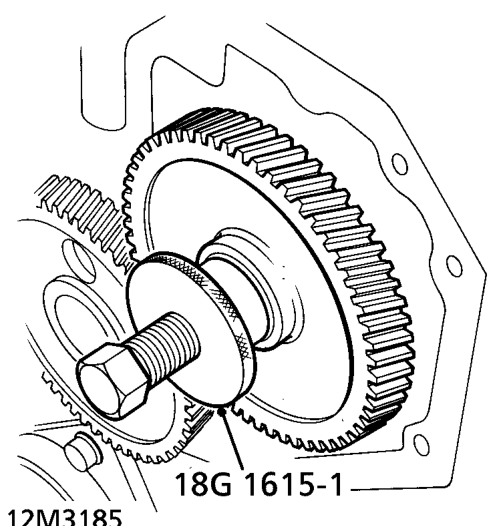

Remove tool 18G 1615-1 from 18G 1615
  1. Fit tool 18G 1615-1 to injection pump timing gear.
  2. Remove injector pipes. See FUEL DELIVERY SYSTEM, Repairs.

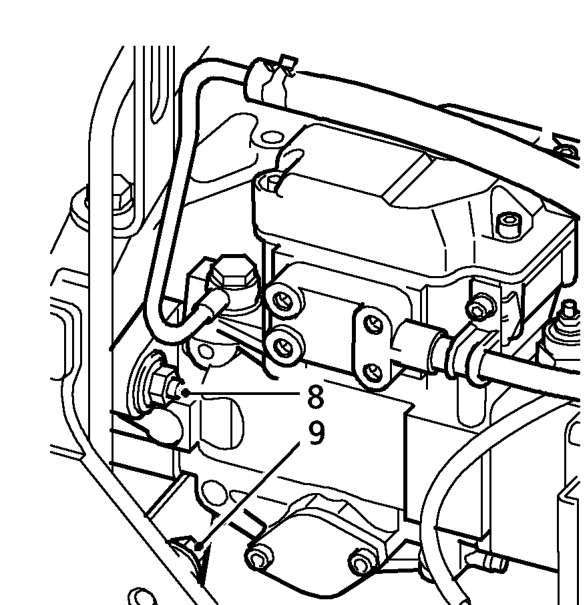

Remove injector pipes. See FUEL DELIVERY SYSTEM, Repairs.
  1. Remove 3 nuts securing injection pump.
  2. Remove bolt securing injection pump support bracket. Remove support bracket.
  3. Tighten centre screw of tool 18G 1615-1 and release injection pump timing gear from pump drive shaft.
  4. Remove pump timing gear and tool 18G 1615-1 .

CAUTION: Do not rotate engine with injection pump timing gear removed.

  1. Remove 18G 1615-1 from injection pump timing gear.
