Workshop Manuals Factory service & repair Rover
Rover 800 Workshop Manual (1996-1999)05 · Engine - diesel
05 · Engine

Flywheel

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › Flywheel
Engine - dieselFlywheel · page 1 of 2

Refit

  1. Thoroughly clean each tappet.
  2. Lubricate each tappet with clean engine oil. See INFORMATION, Capacities, fluids and lubricants.
  3. Fit tappets.
  4. Clean tappet retainers.
  5. Fit tappet retainers.
  6. Fit cylinder head gaskets. See this section.

FLYWHEEL

Service repair no - 12.53.07

Remove

  1. Remove clutch assembly.See CLUTCH, Repairs.

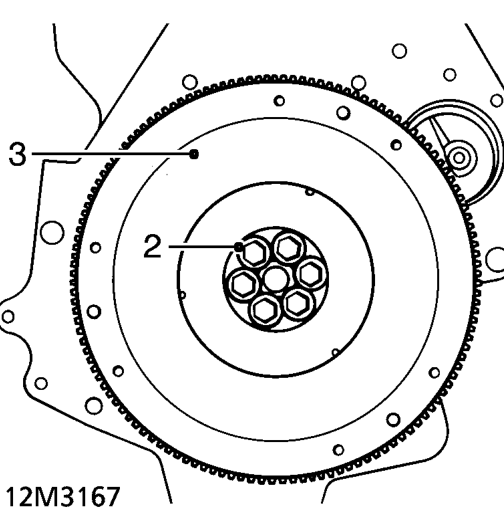

Flywheel – Remove clutch assembly.See CLUTCH, Repairs.
  1. Remove and discard 6 bolts securing flywheel to crankshaft.
  2. Remove flywheel from crankshaft.

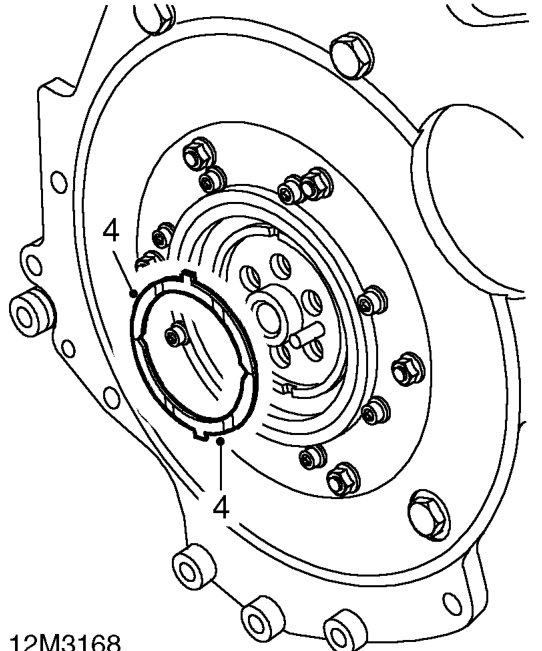

Flywheel – Remove flywheel from crankshaft.
  1. Remove 2 thrust washers from rear main bearing carrier.
