Rover 800 Workshop Manual (1996-1999)05 · Engine - diesel
05 · Engine

Air conditioning

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › Air conditioning
Engine - dieselAir conditioning

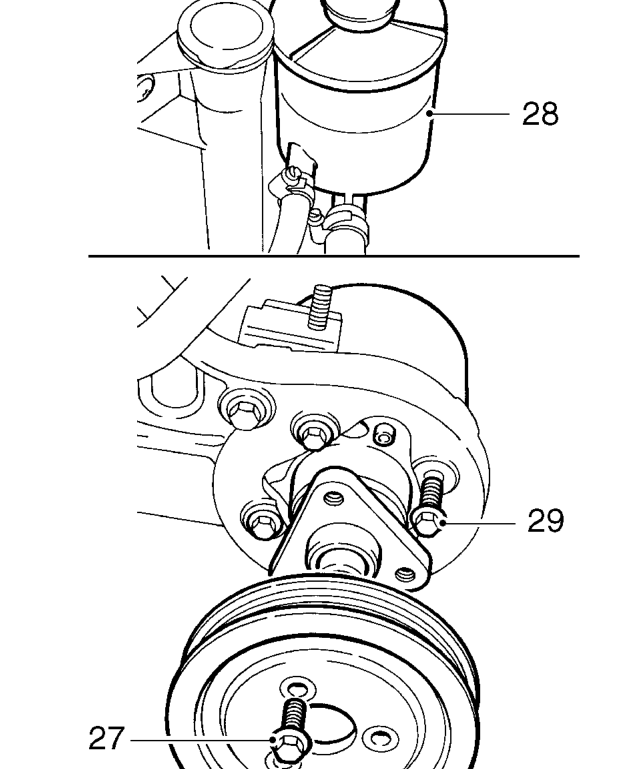

Diagram
  1. Remove 3 bolts securing PAS pump pulley and remove pulley.
  2. Release PAS reservoir from its mounting bracket.
  3. Remove 4 bolts securing PAS pump, release pump and tie aside.

Air conditioning

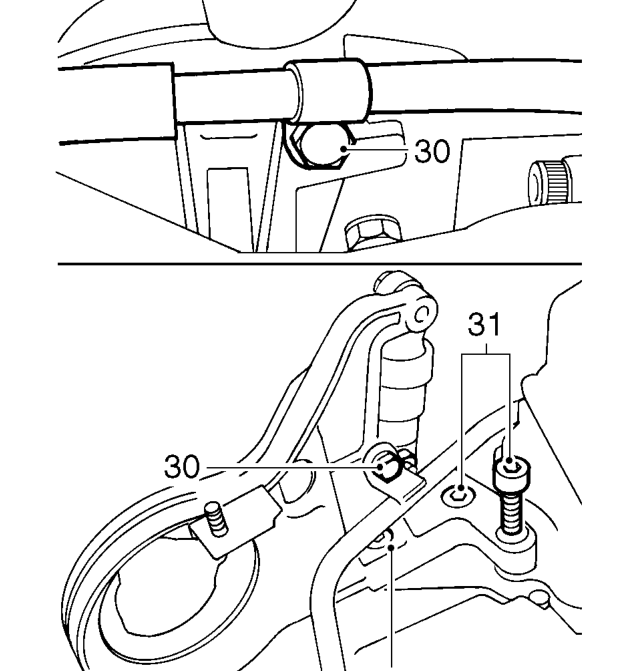

Air conditioning – Remove 4 bolts securing PAS pump, release pump and tie aside.
  1. Remove 2 bolts securing vacuum pipe to PAS pump bracket and coolant pump.
  2. Remove 3 Allen bolts securing PAS pump bracket and remove bracket.
