Rover 800 Workshop Manual (1996-1999)05 · Engine - diesel
05 · Engine

Engine sump

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › Engine sump
Engine - dieselEngine sump

ENGINE SUMP

Service repair no - 12.60.44

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove LH underbelly panel. See BODY, Repairs.
  2. Remove RH underbelly panel. See BODY, Repairs.
  3. Drain engine oil. See Adjustments.
Engine sump – Drain engine oil. See Adjustments.

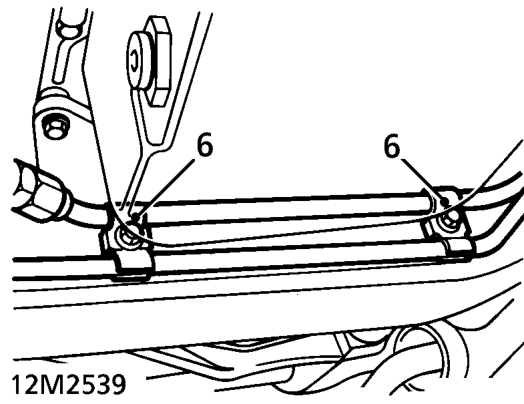

  1. Remove 2 bolts securing PAS pipes to centre beam.
Engine sump – Remove 2 bolts securing PAS pipes to centre beam.

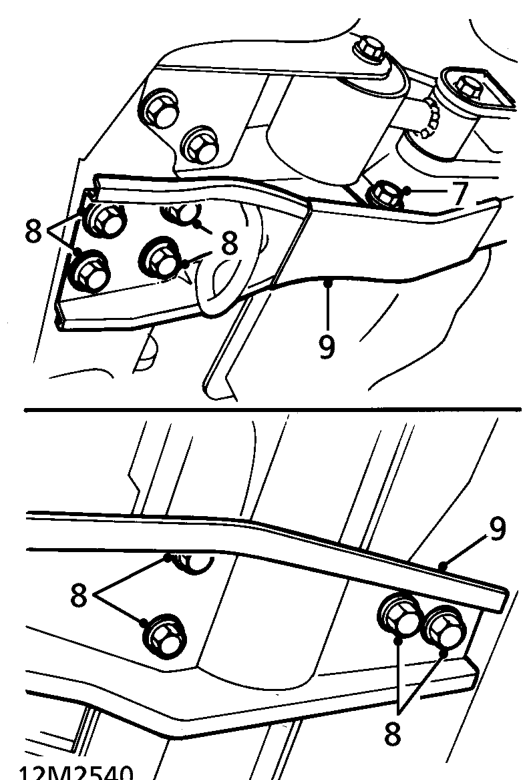

  1. Remove bolt securing steady bar bracket to centre beam.
  2. Remove 8 bolts securing centre beam to front and rear cross-members.
  3. Remove centre beam.
Engine sump – Remove centre beam.

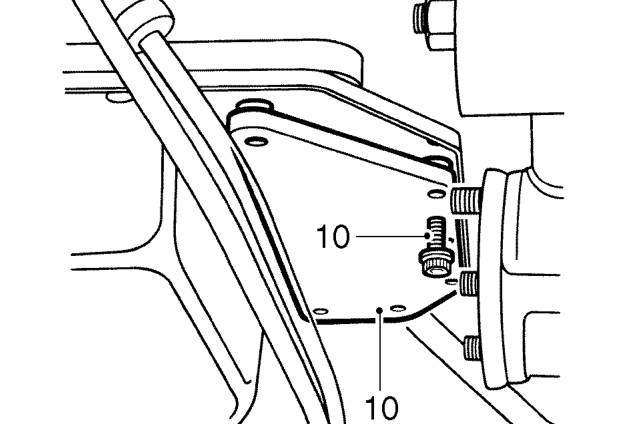

  1. Remove 6 Allen screws securing sump reinforcing plate. Remove plate.
