Rover 800 Workshop Manual (1996-1999)05 · Engine - diesel
05 · Engine

Camshaft (page 4 of 9)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Engine - dieselCamshaft · page 4 of 9
Diagram

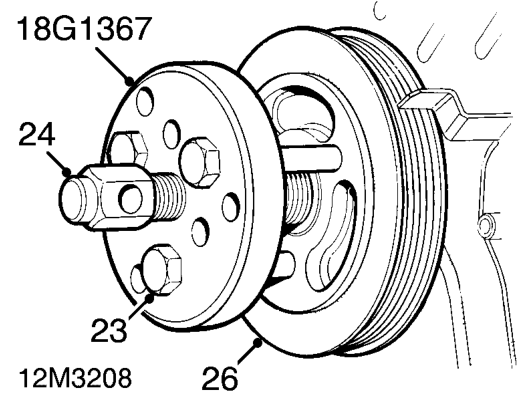

  1. Position tool 18G 1367 to crankshaft pulley and fit and tighten bolts.
  2. Tighten centre screw on tool 18G 1367 to remove crankshaft pulley.
  3. Remove tool 18G 1367.
  4. Remove crankshaft pulley.
Remove crankshaft pulley.

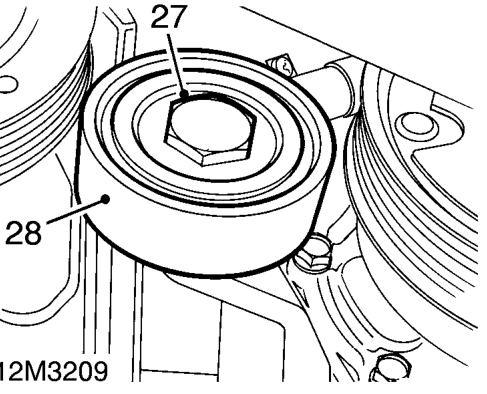

  1. Air conditioning: Remove centre bolt from lower jockey pulley.

NOTE: LH thread.

  1. Remove pulley.

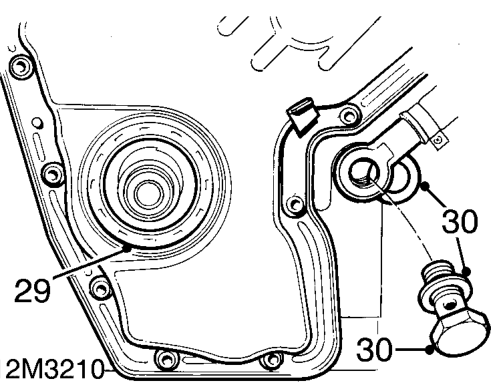

  2. Warm area around crankshaft front oil seal using a hot air gun and carefully lever out seal. Discard seal.
Warm area around crankshaft front oil seal using a hot air gun and carefully lever out sea
  1. Remove brake servo pipe banjo bolt and discard 2 sealing washers.
Remove brake servo pipe banjo bolt and discard 2 sealing washers.

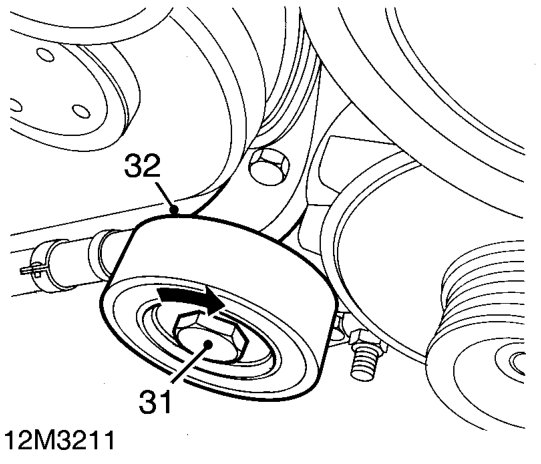

  1. Remove centre bolt from upper jockey pulley.

NOTE: LH thread.

  1. Remove pulley.
