Engine - dieselCamshaft · page 5 of 9

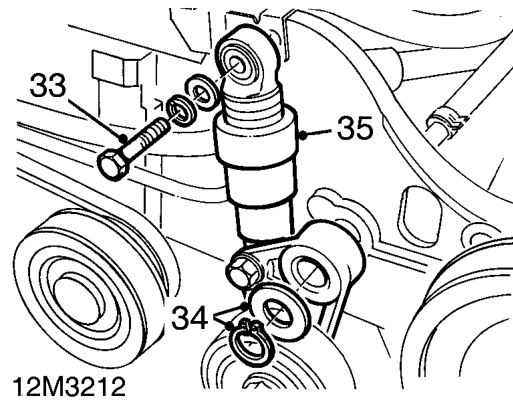

33. Remove ancillary drive belt tensioner top bolt.
34. Remove tensioner pivot pin circlip and washer.
35. Remove tensioner assembly.

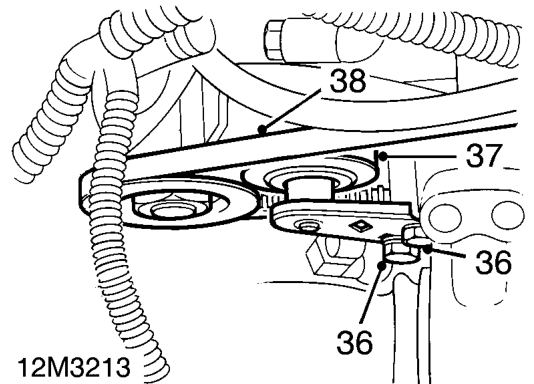

36. Remove 2 bolts securing coolant pump drive belt tensioner jockey pulley arm.
37. Remove tensioner jockey.
38. Remove coolant pump drive belt.

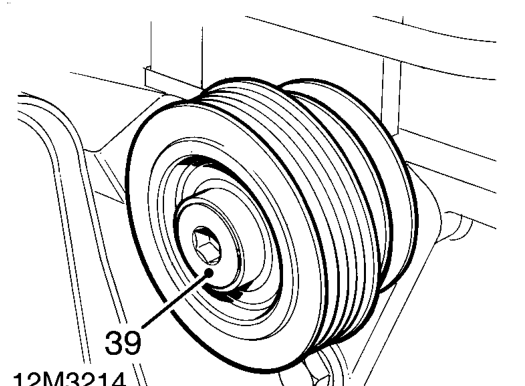

39. Remove Allen screw securing coolant pump drive pulley.

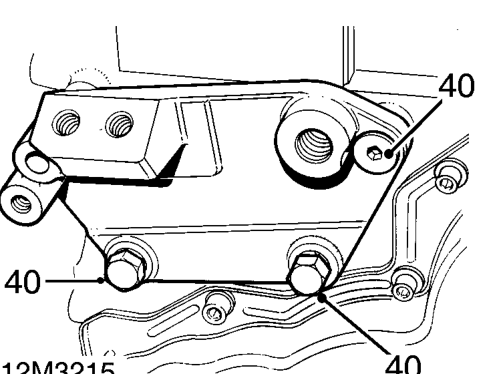

40. Remove 2 bolts and Allen screw securing engine mounting plate and remove plate.
