Engine - dieselCamshaft · page 2 of 9
Diagram

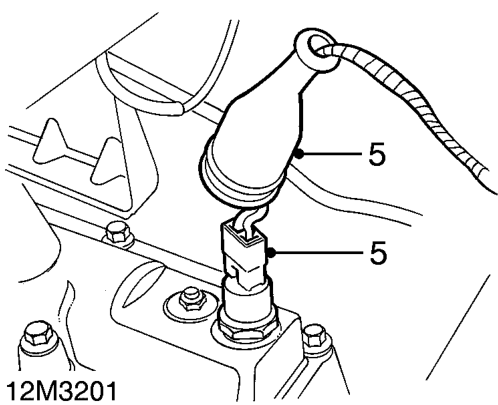

  1. Release cover from reverse light switch and disconnect multiplug.
Release cover from reverse light switch and disconnect multiplug.

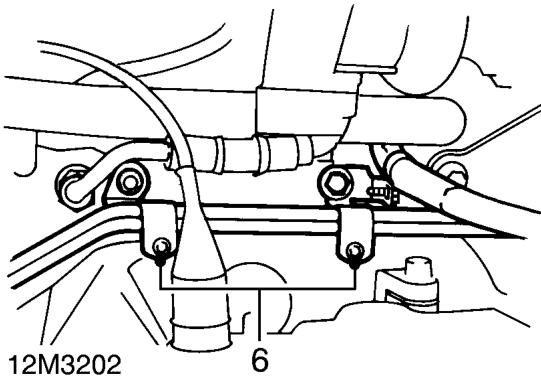

  1. Remove 2 bolts securing fuel pipe clamps and move pipes aside.
Remove 2 bolts securing fuel pipe clamps and move pipes aside.

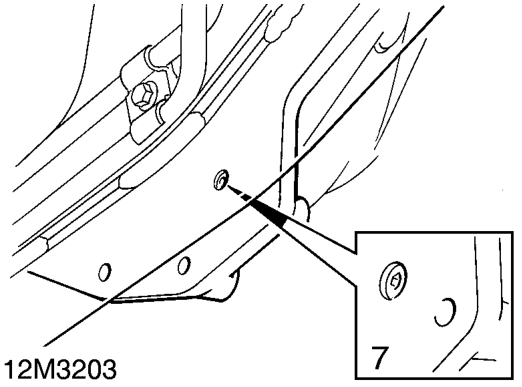

  1. Remove Allen screw securing gearbox to engine backplate.
Remove Allen screw securing gearbox to engine backplate.

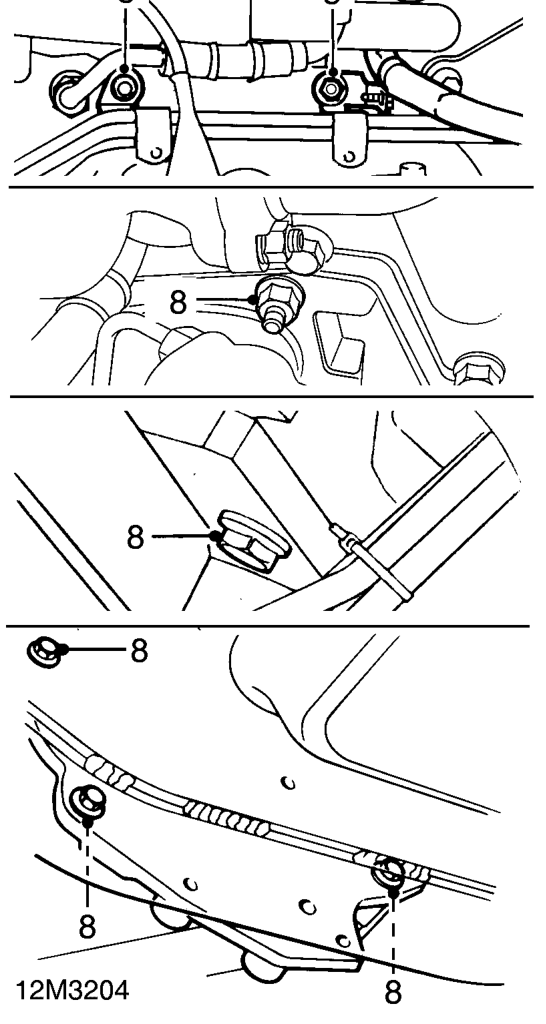

  1. Remove 3 nuts and 3 bolts securing gearbox to engine.
  2. With assistance, release and remove gearbox from engine.
  3. Remove rocker cover gasket. See this section.
