Rover 800 Workshop Manual (1996-1999)05 · Engine - diesel
05 · Engine

Camshaft (page 3 of 9)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Engine - dieselCamshaft · page 3 of 9
Diagram

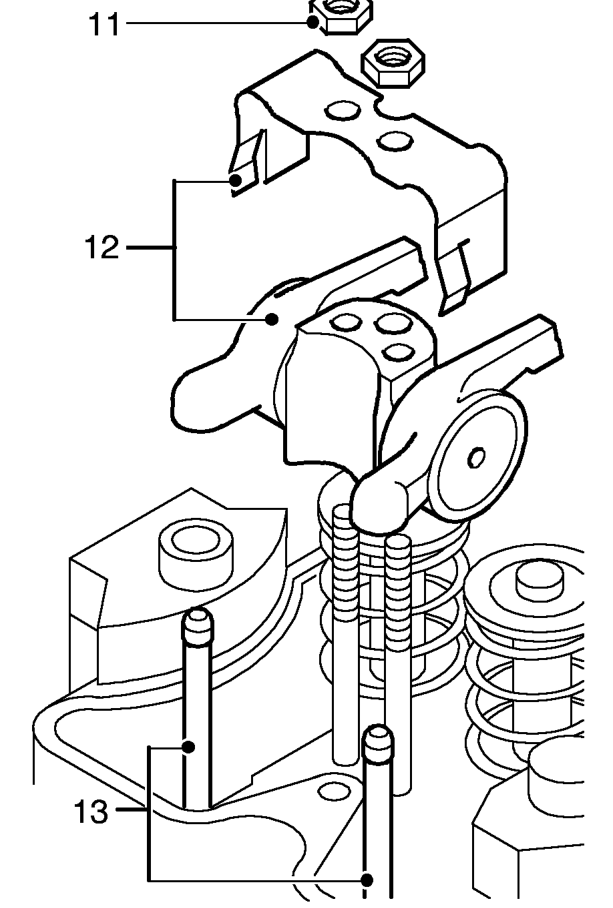

  1. Remove 8 nuts securing rocker assemblies.
  2. Remove 4 rocker assemblies.
  3. Remove 8 push rods.

CAUTION: Keep rocker assemblies and push rods in their fitted order.

Remove 8 push rods.

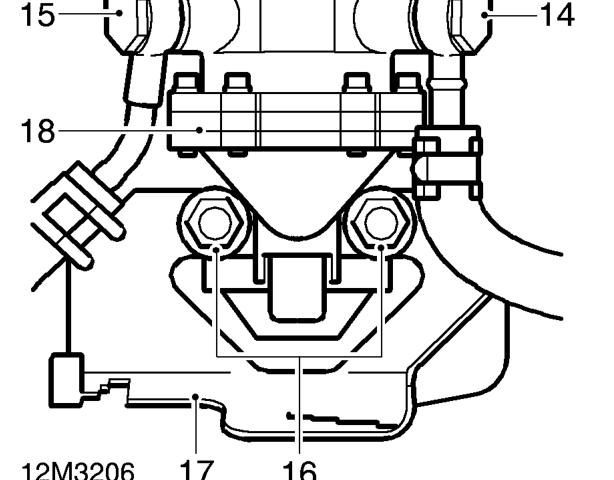

  1. Remove fuel inlet hose banjo bolt from fuel lift pump, discard 2 sealing washers.
  2. Remove fuel outlet hose banjo bolt from fuel lift pump, discard 2 sealing washers.
  3. Remove 2 nuts securing fuel lift pump.
  4. Release multiplug bracket.
  5. Remove fuel lift pump.
  6. Remove and discard ’O’ ring.
Remove and discard ’O’ ring.

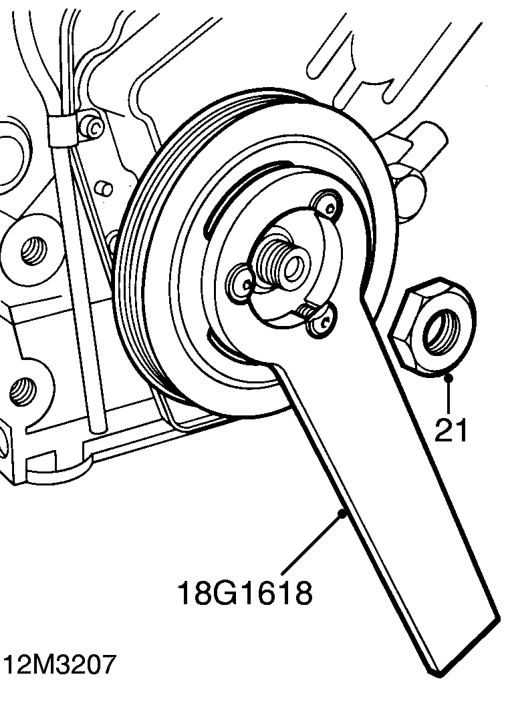

  1. Position tool 18G 1618 to crankshaft and fit and tighten screws.
  2. Remove crankshaft pulley nut.
  3. Remove tool 18G 1618.
