Rover 800 Workshop Manual (1996-1999)05 · Engine - diesel
05 · Engine

Camshaft (page 6 of 9)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Engine - dieselCamshaft · page 6 of 9
Diagram

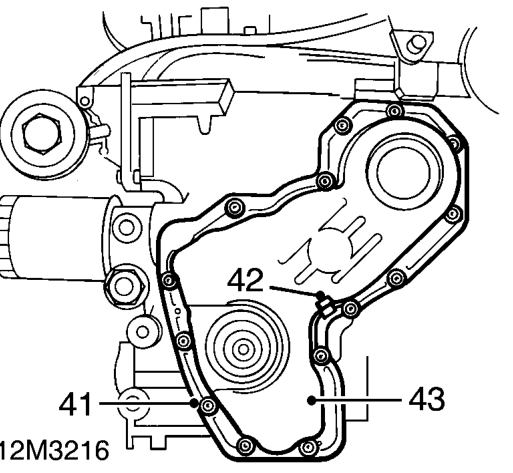

  1. Remove 14 screws screws securing timing cover.
  2. Remove timing pointer.
  3. Release and remove cover.
Release and remove cover.

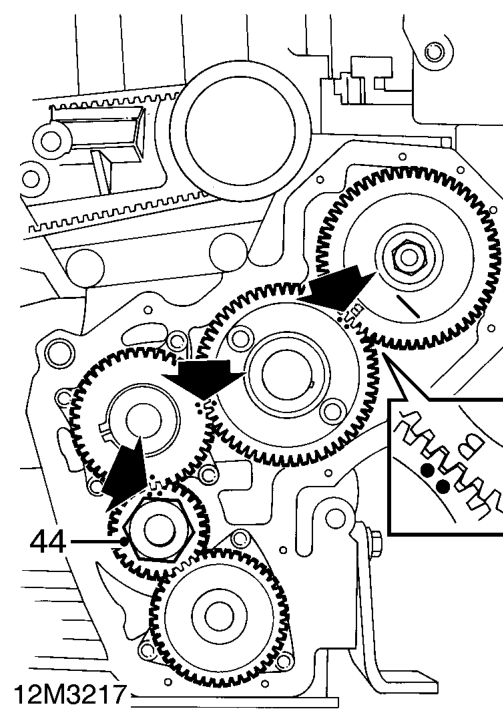

  1. Fit crankshaft pulley nut and rotate crankshaft in a clockwise direction to align timing marks.
  2. Remove pulley nut.
Remove pulley nut.

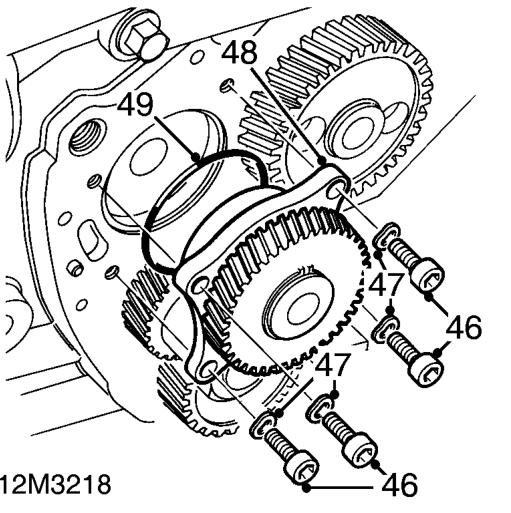

  1. Remove 4 Allen screws securing brake servo vacuum pump.
  2. Remove 4 wave washers.
  3. Remove brake servo vacuum pump.
  4. Remove and discard ’O’ ring.
  5. Using assistance, roll engine over onto its side.
Using assistance, roll engine over onto its side.

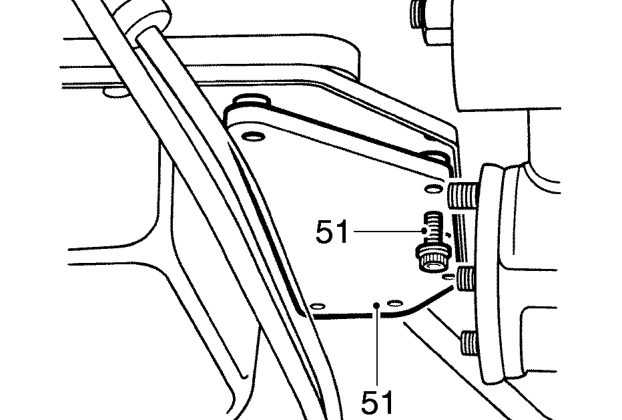

  1. Remove 6 Allen screws securing sump reinforcing plate. Remove plate.
