Rover 800 Workshop Manual (1996-1999)12 · Cooling system - diesel
12 · Engine

Coolant manifold

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › Coolant manifold
Cooling system - dieselCoolant manifold

COOLANT MANIFOLD

Service repair no - 26.30.64

Remove

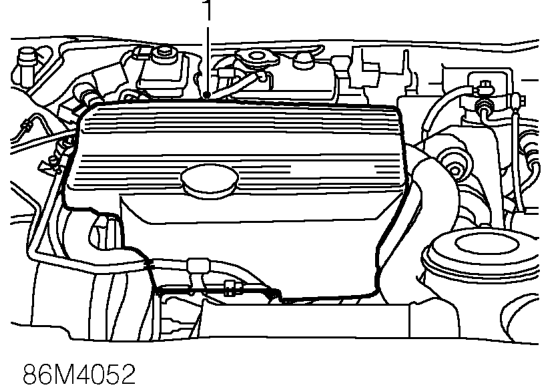

Coolant manifold – Service repair no - 26.30.64
  1. Remove engine acoustic cover.
  2. Drain cooling system. See Adjustments.

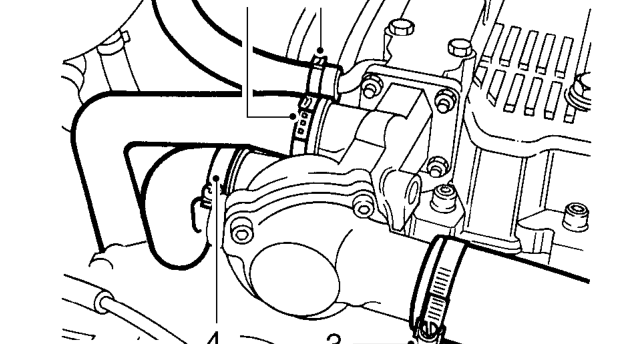

Coolant manifold – Drain cooling system. See Adjustments.
  1. Loosen 2 clips and disconnect top hose and heater hose from thermostat housing.
  2. Loosen clip and disconnect coolant pump hose from thermostat housing.
  3. Release clip and disconnect expansion tank hose from coolant manifold.

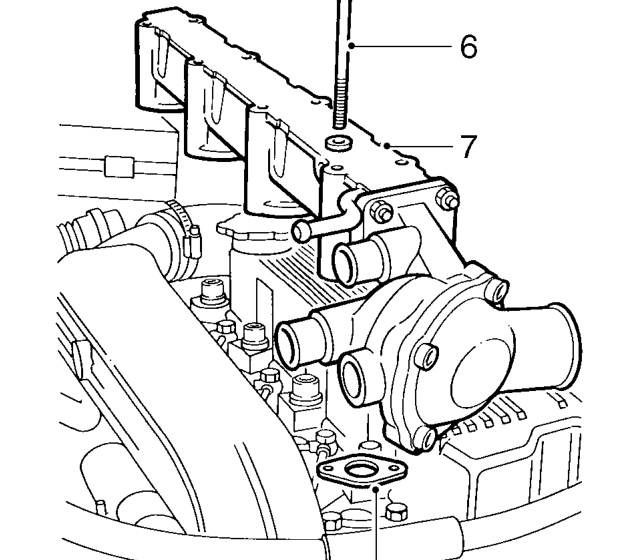

Coolant manifold – Release clip and disconnect expansion tank hose from coolant manifold.
  1. Remove 8 bolts securing coolant manifold to cylinder heads.
  2. Remove coolant manifold
  3. Remove and discard 4 gaskets. Do not carry out further dismantling if component is removed for access only.
