Engine management system - MEMSCruise control

Refit

  1. Clean all faces on throttle housing.
  2. Fit gasket and VIS motor to throttle housing. Tighten screws to 9 Nm.
  3. Fit throttle position sensor, fit and tighten screws.

Cruise control

  1. Position cruise control actuator, fit and tighten Torx screws.
  2. Connect pull rod to throttle lever.

All models

  1. Fit throttle housing gasket.
  2. Position throttle housing and connect throttle position sensor multiplug. Tighten throttle housing bolts to 10 Nm.
  3. Connect stepper motor multiplug.
  4. Connect VIS motor multiplug.
  5. Connect vacuum hoses to throttle housing.
  6. Connect throttle cable to cam and outer cable to abutment bracket.
  7. Connect engine harness multiplug to bracket.
  8. Position intake hose to throttle housing and secure clip.
  9. Fit air cleaner. See this section.
  10. Adjust throttle cable. See Adjustments.
  11. Fit engine acoustic cover. See BODY, Repairs.
  12. Connect battery earth lead.

CONNECT VALVE MOTOR - VIS - KV6

Service repair no - 19.22.64

Remove

  1. Remove air cleaner assembly. See this section.

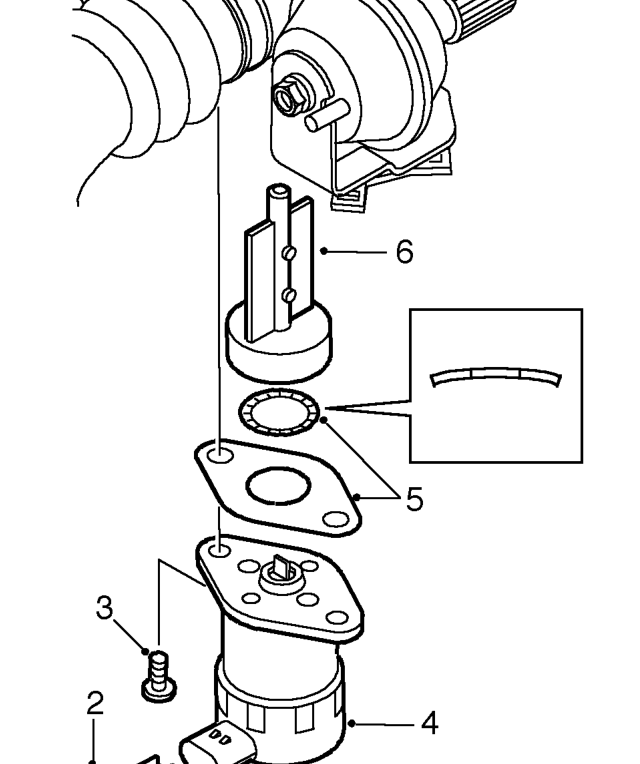

Connect valve motor - vis - kv6 – Remove air cleaner assembly. See this section.
  1. Disconnect multiplug from motor.
  2. Remove 2 TX25 screws securing motor to throttle housing.
  3. Release motor from gasket and remove motor.
  4. Remove gasket and Bellville washer. Discard gasket.
  5. Withdraw bearing and butterfly assembly from housing.
