Air cleaner element - KV6

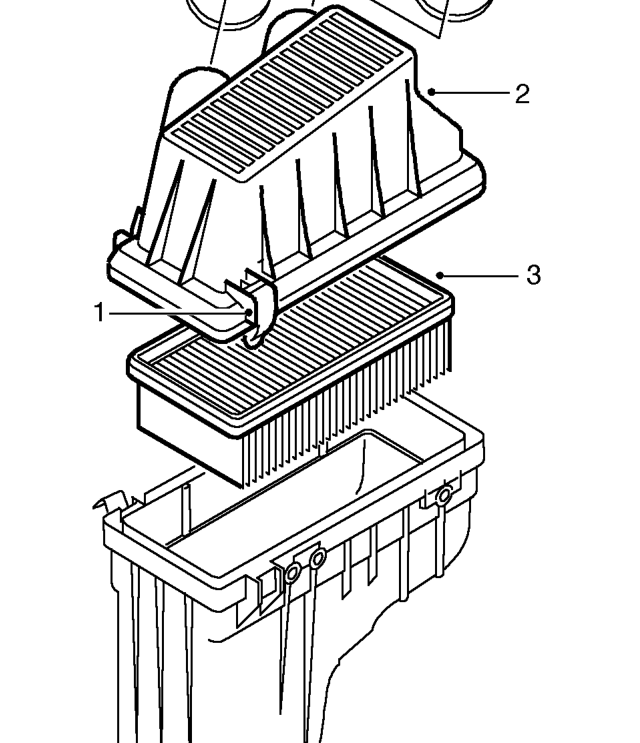

AIR CLEANER ELEMENT - KV6

Service repair no - 19.10.10

Remove

1. Release 4 clips securing 2 halves of air cleaner together.
2. Release top half of air cleaner and position aside.
3. Remove and discard air cleaner element.

Refit

1. Clean inside of air cleaner casing.
2. Fit new air cleaner element in casing.
3. Position top half of air cleaner casing and secure with clips.

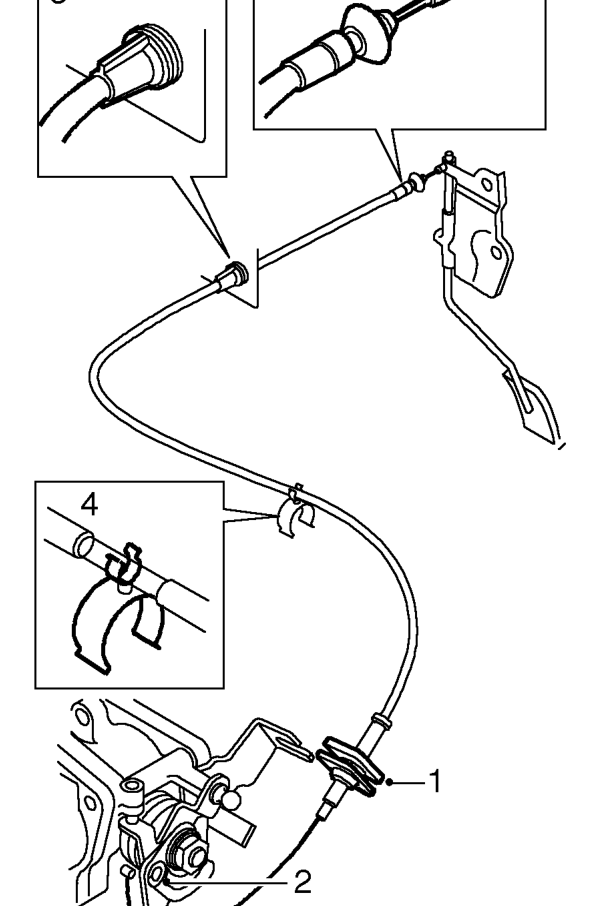

THROTTLE CABLE - KV6

Service repair no - 19.20.06

Remove

1. Release cable adjusting nut from abutment bracket.
2. Release inner cable from throttle cam.
3. Rotate outer cable retainer 90°and release cable retainer from bulkhead.
4. Release cable from clip on engine harness.
5. Remove clip and release cable from throttle pedal. Remove cable.
