THROTTLE HOUSING - KV6

Service repair no - 19.22.45

Remove

  1. Disconnect battery earth lead.
  2. Remove air cleaner, See this section.
  3. Remove engine acoustic cover, See BODY, Repairs.

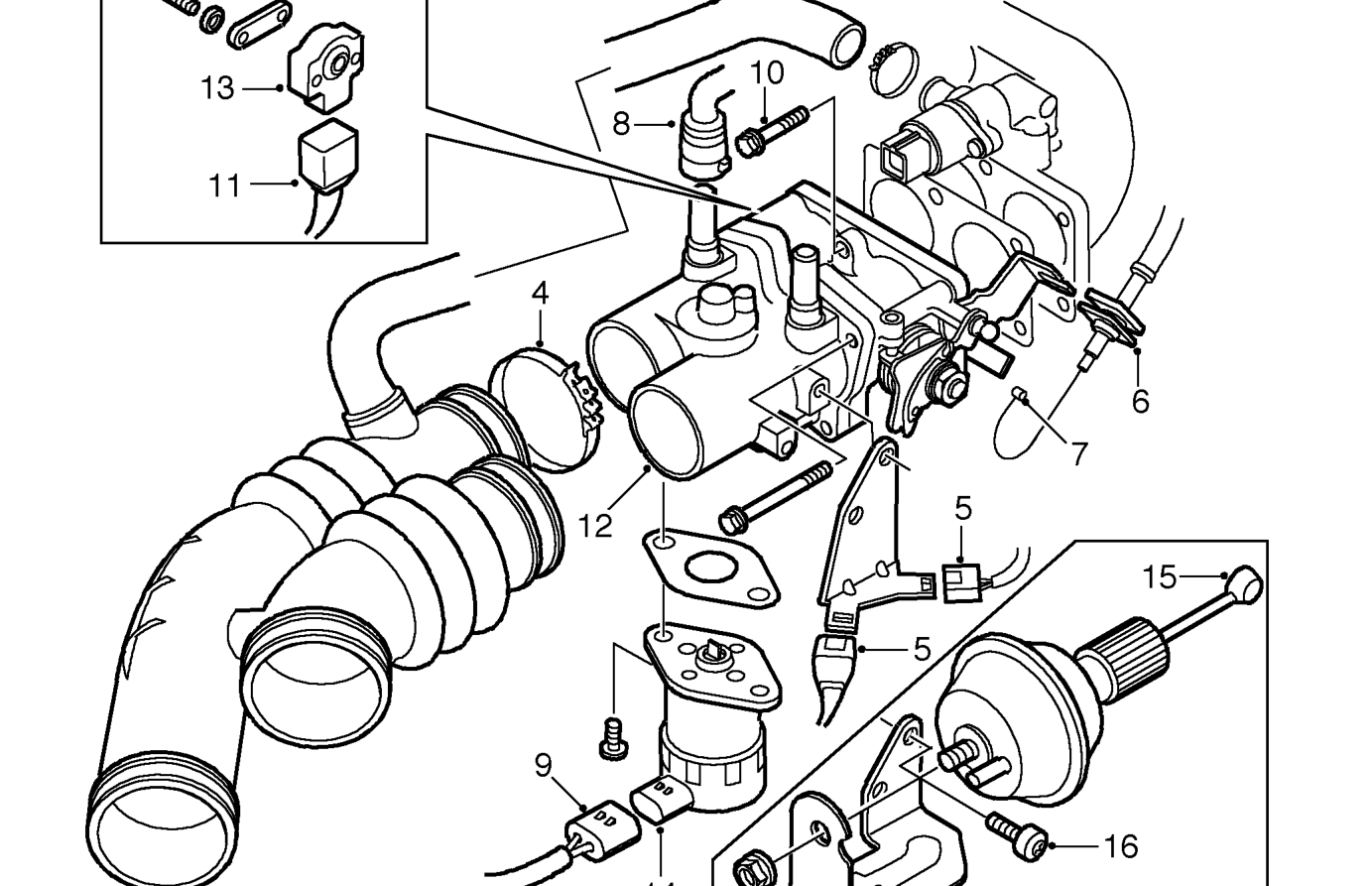

Throttle housing - kv6 – Remove engine acoustic cover, See BODY, Repairs.
  1. Release clip securing intake hose to throttle housing and move hose aside.
  2. Disconnect engine harness multiplugs from bracket on throttle housing.
  3. Release throttle cable from abutment bracket.
  4. Release throttle inner cable from cam.
  5. Disconnect 2 vacuum hoses from throttle housing.
  6. Disconnect multiplug from variable induction system (VIS) motor.
  7. Remove 5 bolts securing throttle housing to manifold chamber.
  8. Release throttle housing and disconnect throttle position sensor multiplug.
  9. Remove throttle housing and gasket. Do not carry out further dismantling if component is removed for access only.
  10. Remove 2 screws and remove throttle position sensor.
  11. Remove 2 Torx screws and remove VIS motor. Remove gasket.

Cruise control

  1. Release actuator pull rod from throttle lever.
  2. Remove 2 TX25 screws securing actuator to throttle housing.
  3. Remove actuator.
