Rover 800 Workshop Manual (1996-1999)08 · Engine management system - MEMS
08 · Engine

Camshaft position (cmp) sensor - KV6

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › Camshaft position (cmp) sensor - KV6
Engine management system - MEMSCamshaft position (cmp) sensor - KV6

Refit

  1. Feed new cable through bulkhead and connect inner cable to pedal.
  2. Fit retaining clip.
  3. Smear rubber grease on both sides of the rubber seal and secure cable to bulkhead.
  4. Refit throttle cable to clip on the engine harness.
  5. Connect inner cable to throttle cam.
  6. Adjust throttle cable. See Adjustments.

CAMSHAFT POSITION (CMP) SENSOR - KV6

Service repair no - 19.22.07

Remove

  1. Remove engine acoustic cover. See BODY, Repairs.
Camshaft position (cmp) sensor - kv6 – Remove engine acoustic cover. See BODY, Repairs.

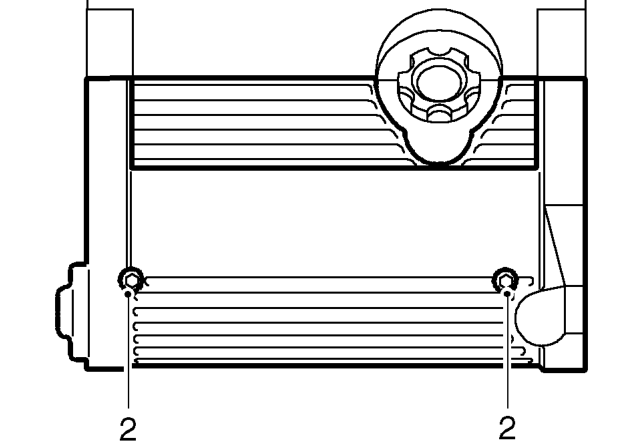

  1. Remove 2 bolts securing spark plug cover to camshaft cover. Remove cover.
Camshaft position (cmp) sensor - kv6 – Remove 2 bolts securing spark plug cover to camshaft cover. Remove cover.

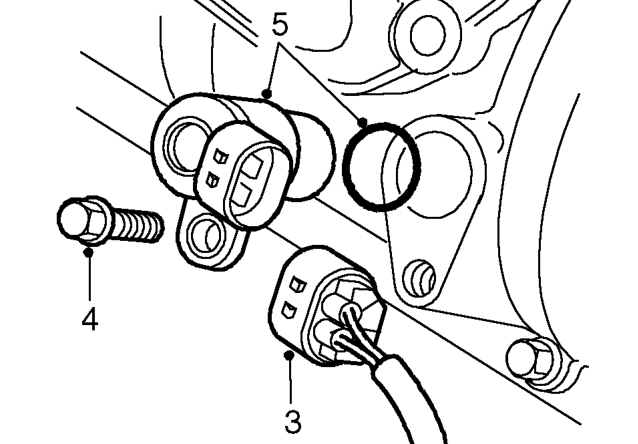

  1. Disconnect multiplug from camshaft position sensor.
  2. Remove bolt securing camshaft position sensor to camshaft cover.
  3. Remove sensor and discard ’O’ ring.
