Actuator unit - cruise control - KV6

ACTUATOR UNIT - CRUISE CONTROL - KV6

Service repair no - 19.75.05

Remove

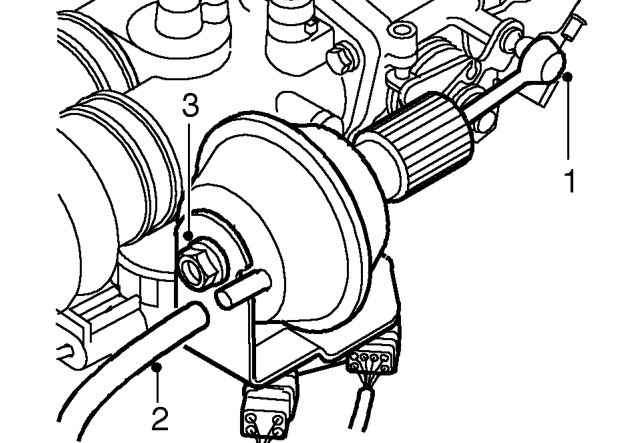

1. Disconnect pull rod from throttle lever.
2. Disconnect vacuum hose from actuator.
3. Remove flanged nut and remove actuator unit from bracket.

Refit

1. Locate actuator unit in bracket and tighten nut.
2. Connect vacuum hose to actuator.
3. Connect pull rod to throttle lever.
4. Check pull rod to retainer clearance.

NOTE: With lever fully returned, pull rod should just be held by retainer.

5. Release retainer by turning anti-clockwise,₁ eliminate clearance and rotate retainer /₂ turn clockwise. Check pull rod is just held and₁ rotate retainer a further /₄ turn clockwise to lock.

VACUUM CONTROL UNIT - CRUISE CONTROL - KV6

Service repair no - 19.75.06

Remove

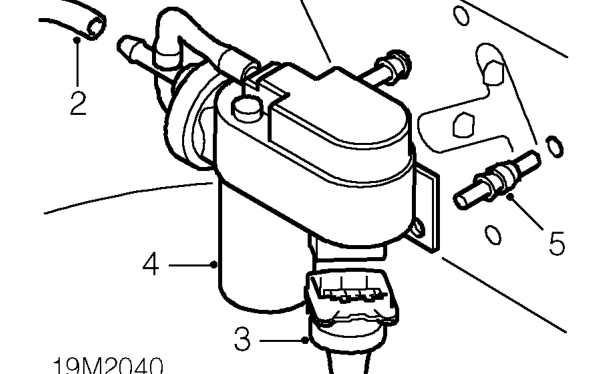

1. Remove battery, See ELECTRICAL, Repairs.

2. Disconnect vacuum hose from control unit.
3. Press clip and disconnect multiplug from control unit.
4. Release 3 mounting rubbers from body panel and remove control unit.
5. Remove mounting rubbers from control unit.

Refit

1. Fit mounting rubbers to body panel.
2. Apply rubber lubricant to neck of each rubber mounting.
3. Position control unit and locate rubber mountings, press control unit and pull neck of mounting rubbers through.
4. Connect multiplug.
5. Connect vacuum hose.
6. Refit battery, See ELECTRICAL, Repairs.
