FUEL RAIL - KV6

Service repair no - 19.60.04

Remove

  1. Remove inlet manifold chamber. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  2. Depressurise fuel system. See Adjustments.
Fuel rail - kv6 – Depressurise fuel system. See Adjustments.

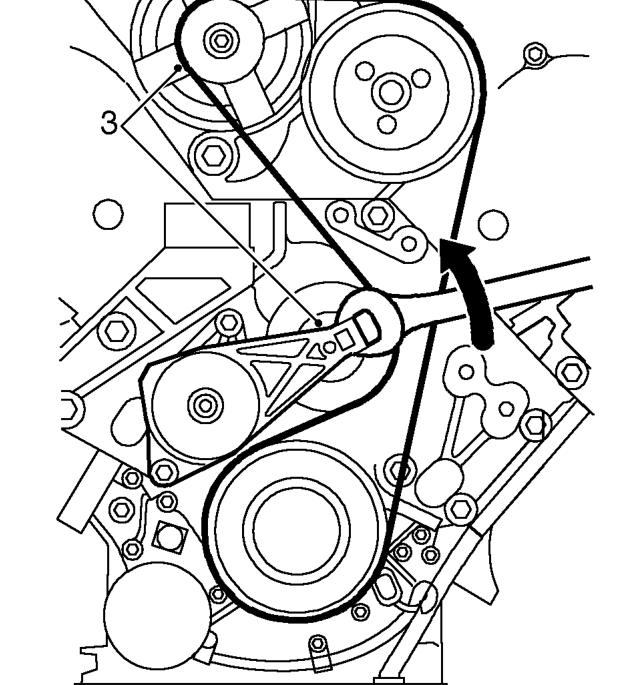

  1. Using a 25 mm spanner on the alternator drive belt tensioner, release and disconnect drive belt from alternator pulley.
Fuel rail - kv6 – Using a 25 mm spanner on the alternator drive belt tensioner, release and disconnect drive

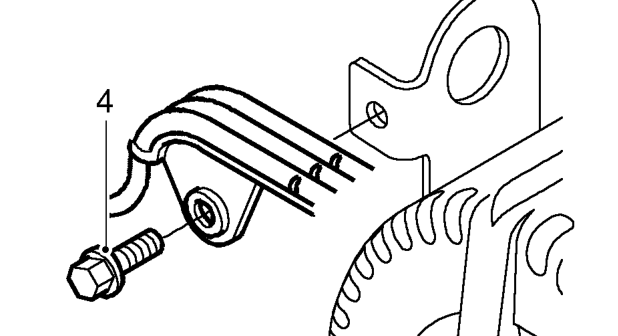

  1. Remove bolt securing plug lead retainer to engine lifting bracket and move aside.
  2. Position jack to support engine.

CAUTION: Use a block of wood or hard rubber pad to protect engine.
