Rover 800 Workshop Manual (1996-1999)08 · Engine management system - MEMS
08 · Engine

Fuel rail - KV6 (page 2 of 3)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Engine management system - MEMSFuel rail - KV6 · page 2 of 3
Diagram

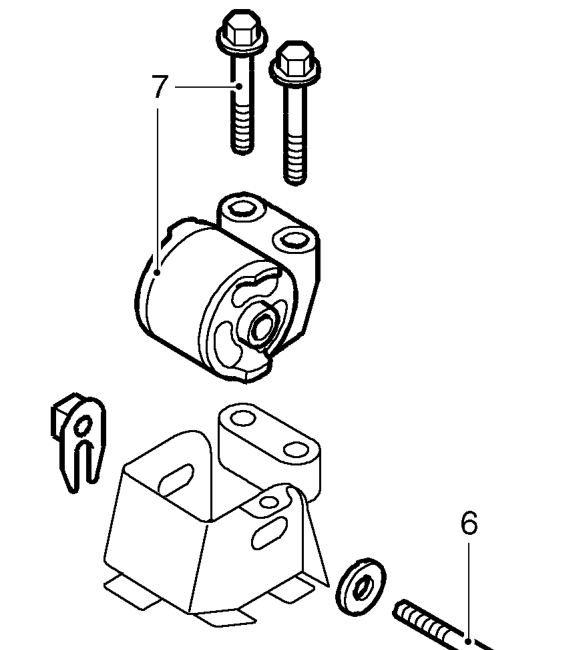

  1. Remove bolt securing RH engine mounting to body.
  2. Remove 2 bolts securing RH mounting to engine. Remove mounting.
Remove 2 bolts securing RH mounting to engine. Remove mounting.

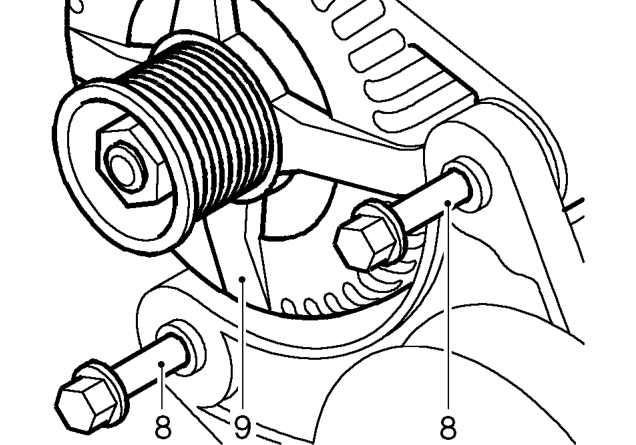

  1. Remove 2 bolts securing alternator to mounting bracket.
  2. Release alternator from mounting bracket.
Release alternator from mounting bracket.

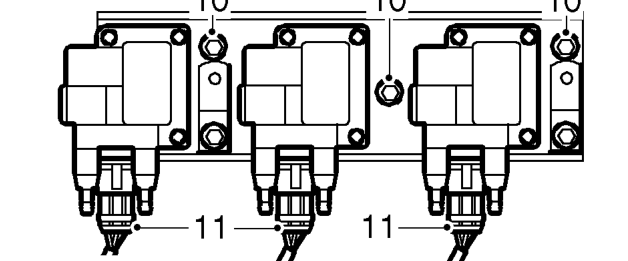

  1. Remove 5 screws securing coil mounting plate to inlet manifold.
  2. Disconnect 3 multiplugs from coils and move coils aside.
