Fuel rail - KV6 (page 3 of 3)

Make

Rover

Model

800 Workshop Manual

Year

1996–1999

Section

Repairs

Engine management system - MEMSFuel rail - KV6 · page 3 of 3

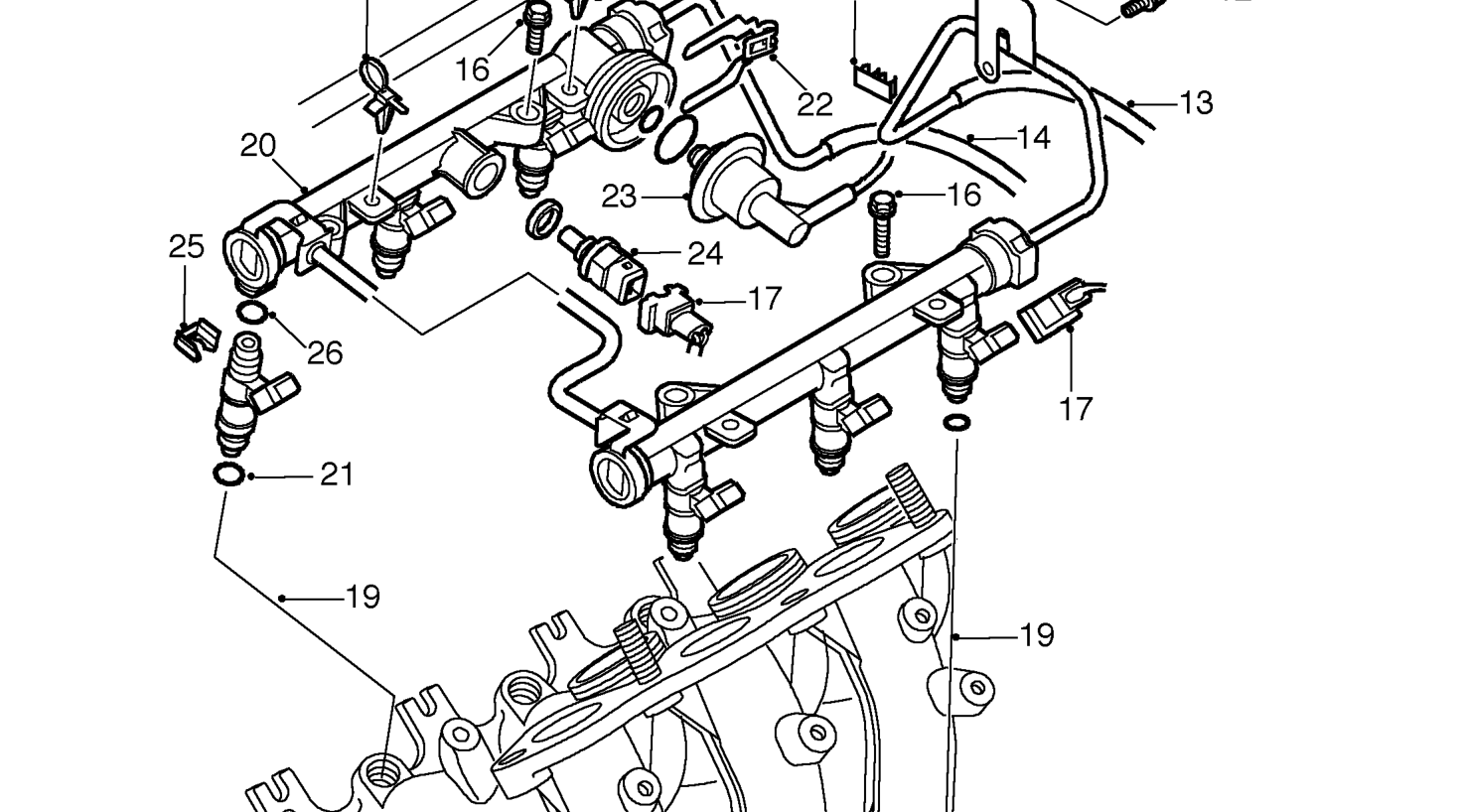

12. Remove bolt securing fuel return pipe to inlet manifold.
13. Release fuel feed hose from filter.
14. Release fuel return hose from return pipe.
15. Release fuel feed and return pipes from clips on cylinder head bracket.
16. Remove 4 bolts securing fuel rail.
17. Disconnect multiplugs from injectors and fuel temperature sensor.
18. Release 4 harness clips from fuel rail.
19. Release injectors from manifolds.
20. Remove fuel rail assembly.
21. Remove and discard ’O’ ring seals from injectors. Do not carry out further dismantling if component is removed for access only.
22. Remove clip securing fuel pressure regulator from fuel rail.
23. Remove pressure regulator and discard ’O’ rings.
24. Remove fuel temperature sensor.
25. Remove 6 clips securing injectors to fuel rail. Remove injectors.
26. Remove ’O’ rings from injectors.
