Balance valve motor - vis - KV6

Refit

1. Position Bellville washer, concave side to gasket, and place bearing and butterfly valve on top.
2. Position butterfly valve and gasket assembly in throttle housing.
3. Position motor on gasket, ensure drive engages butterfly spindle.
4. Fit screws and tighten to 9 Nm.
5. Connect multiplug.
6. Refit air cleaner. See this section.

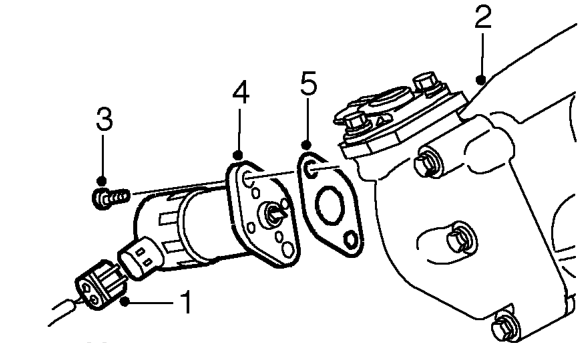

BALANCE VALVE MOTOR - VIS - KV6

Service repair no - 19.22.65

Remove

1. Disconnect multiplug from motor.
2. Release inlet manifold chamber from its fitted position to gain access to motor fixings. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
3. Remove 2 screws securing motor to balance valve housing.
4. Release from gasket and remove motor.
5. Remove and discard gasket.

Refit

1. Fit gasket to motor flange.
2. Position motor on housing, ensure drive engages butterfly spindle.
3. Fit screws and tighten to 9 Nm.
4. Refit inlet manifold chamber. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
5. Connect multiplug to motor.
