Ignition coil - KV6

IGNITION COIL - KV6

Service repair no - 18.20.43

Remove

1. Remove engine acoustic cover, See BODY, Repairs.

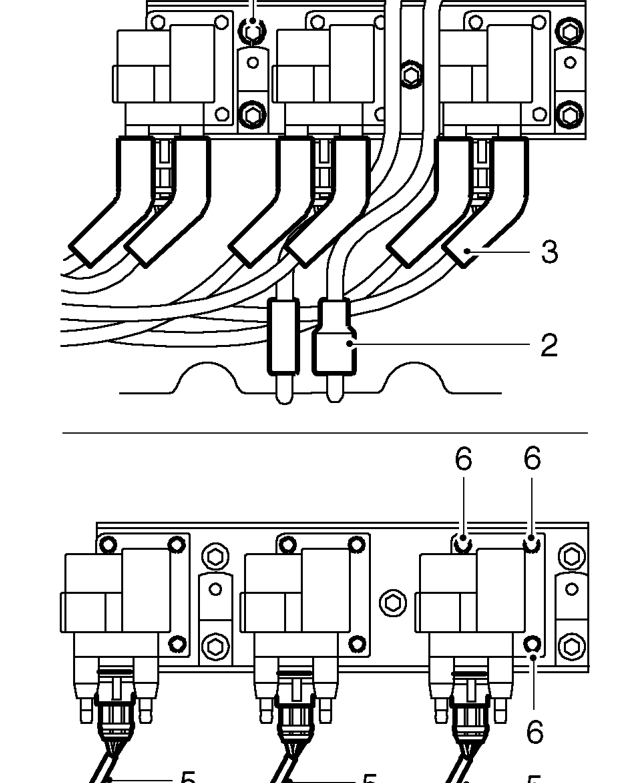

2. Release 2 breather hoses from LH camshaft cover.
3. Disconnect plug leads from coils.
4. Remove 5 screws securing coil mounting plate to engine. Remove 2 acoustic cover mounting brackets.
5. Release retaining clips and disconnect multiplugs from coils. Remove coils and bracket assembly. Do not carry out further dismantling if component is removed for access only.
6. Drill out 3 rivets securing coil to mounting plate and remove coil.

Refit

1. Fit coil to mounting plate.
2. Fit coils and mounting bracket assembly, connect multiplugs.
3. Position acoustic cover brackets.
4. Fit coil mounting bracket screws and tighten to 8 Nm.
5. Connect plug leads to coils.
6. Connect engine breather hoses to camshaft cover.
7. Fit engine acoustic cover, See BODY, Repairs.
