Rover 800 Workshop Manual (1996-1999)08 · Engine management system - MEMS
08 · Engine

Fuel temperature (eft) sensor - KV6

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › Fuel temperature (eft) sensor - KV6
Engine management system - MEMSFuel temperature (eft) sensor - KV6

Refit

  1. Fit new ’O’ ring to sensor.
  2. Fit sensor and tighten bolt to 8 Nm.
  3. Connect multiplug.
  4. Position spark plug cover and tighten bolts to 4 Nm.
  5. Fit engine acoustic cover. See BODY, Repairs.

FUEL TEMPERATURE (EFT) SENSOR - KV6

Service repair no - 19.22.08

Remove

  1. Remove inlet manifold chamber. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

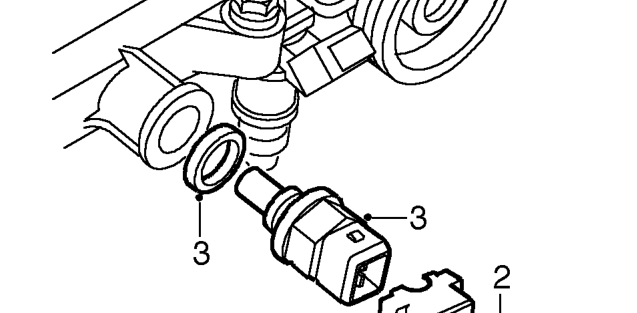

Fuel temperature (eft) sensor - kv6 – Remove inlet manifold chamber. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  1. Disconnect multiplug from fuel temperature sensor.
  2. Remove sensor and discard sealing washer.

Refit

  1. Fit new sealing washer, fit sensor and tighten to 7 Nm.
  2. Fit inlet manifold chamber. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
