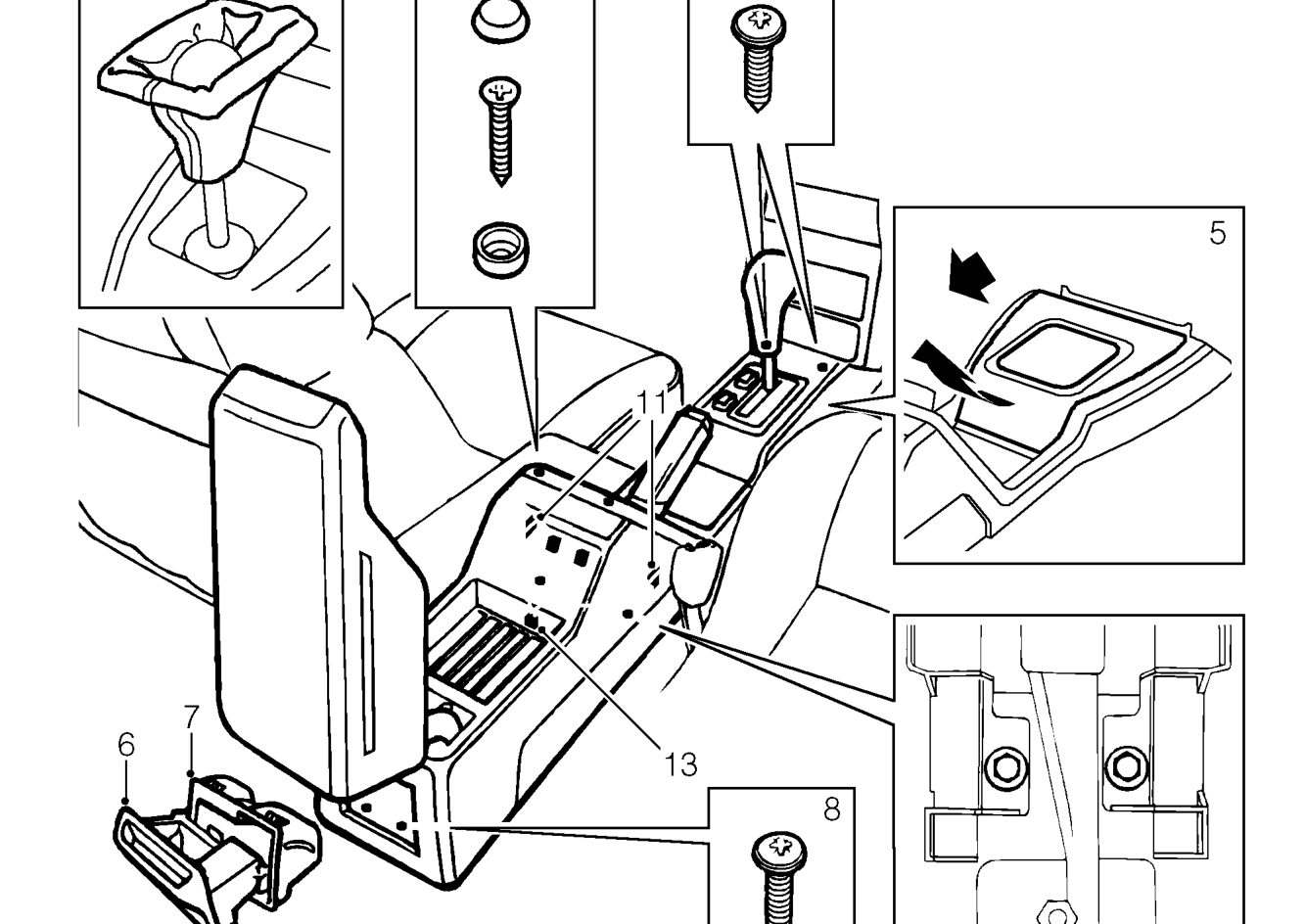

Centre console

CENTRE CONSOLE

Service repair no - 76.25.01

Remove

1. Raise armrest.
2. Remove 2 screw caps and remove 2 screws securing handbrake cover.
3. Apply handbrake, manipulate cover over hand brake, disconnect switch multiplugs and remove cover.
4. Manual gearbox: Release gear lever gaiter.
5. Raise veneer finisher slightly to release rear clips and slide finisher back to disengage front clips. Remove finisher.
6. Remove ash tray.
7. Remove ash tray holder.
8. Remove 2 screws securing rear of console.
9. Remove 2 bolts securing console.
10. Remove 2 screws securing console.
11. Release harness from 2 clips.
12. Raise console and pull back to release from under front ash tray.
13. Disconnect multiplug from receiver module.
14. Remove centre console assembly Do not carry out further dismantling if component is removed for access only.
15. Transfer components to new console.
