Rover 800 Workshop Manual (1996-1999)22 · Body
22 · Body & interior

Motor - tilt - front seat

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › Motor - tilt - front seat
BodyMotor - tilt - front seat · page 1 of 2

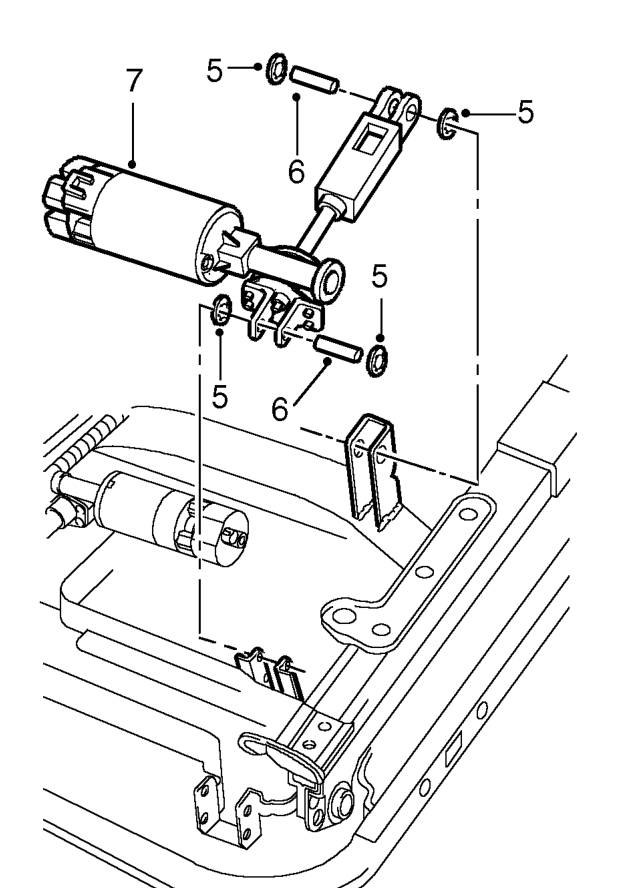

Diagram
  1. Remove retainers from roll pins.
  2. Using a suitable drift remove roll pins securing motor and operating lever to seat frame.
  3. Remove motor.

Refit

  1. Position and align motor to seat frame.

CAUTION: Ensure motor support brackets are not damaged when roll pins are fitted.

  1. Fit New roll pins to secure motor and operating lever.
  2. Fit NEW retainers to roll pins.
  3. Connect multiplugs to motor.
  4. Position ECU to seat and connect multiplug.
  5. Fit front seat. See this section.

MOTOR - TILT - FRONT SEAT

Service repair no - 78.70.29

Remove

  1. Remove front seat. See this section.

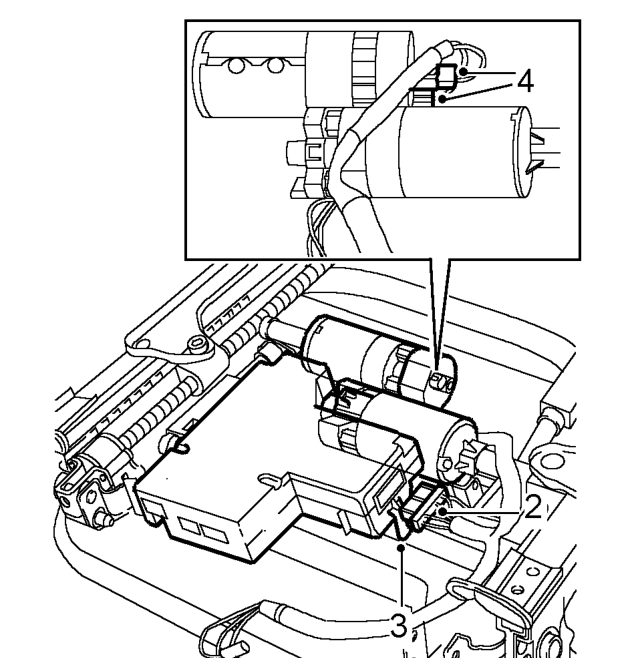

Motor - tilt - front seat – Remove front seat. See this section.
  1. Disconnect multiplug from seat ECU.
  2. Release retainer and remove ECU from seat.
  3. Disconnect 2 multiplugs from tilt motor.
