BodyModels without air conditioning
Diagram

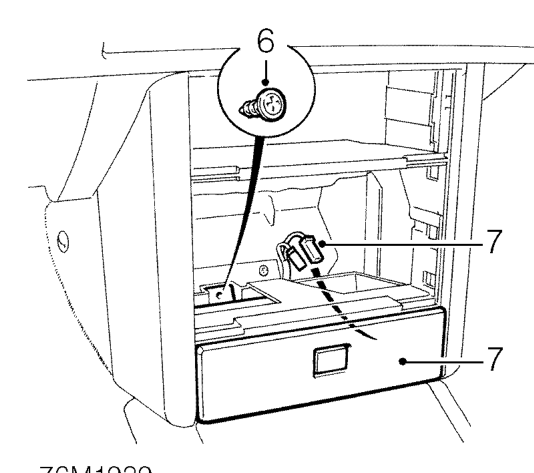

  1. Remove screw securing ash tray.
  2. Release ash tray, disconnect cigar lighter leads and illumination bulb. Remove ash tray.
Release ash tray, disconnect cigar lighter leads and illumination bulb. Remove ash tray.

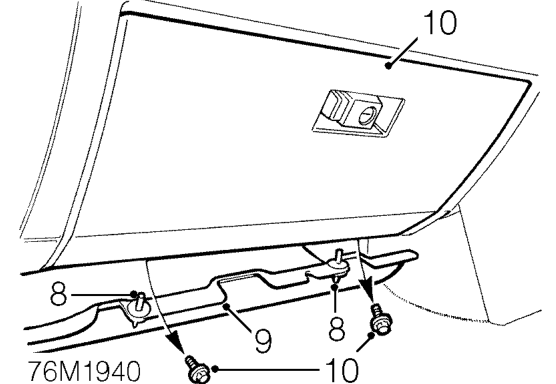

  1. Release 2 turnbuckles securing passenger side closing panel to underside of fascia.
  2. Remove closing panel.
  3. Remove 4 bolts securing glovebox and remove glovebox.
Remove 4 bolts securing glovebox and remove glovebox.

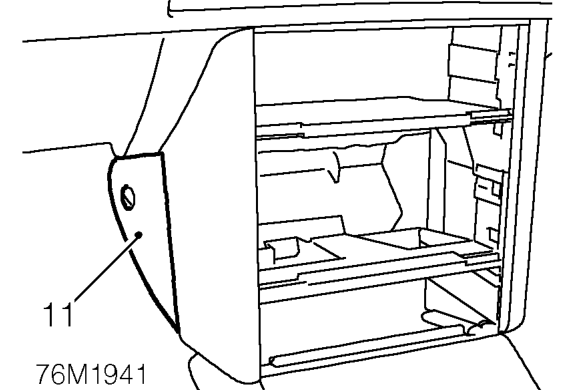

  1. Remove 2 studs and remove 2 carpet finishers from sides of radio console.

Models without air conditioning

Models without air conditioning – Remove 2 studs and remove 2 carpet finishers from sides of radio console.

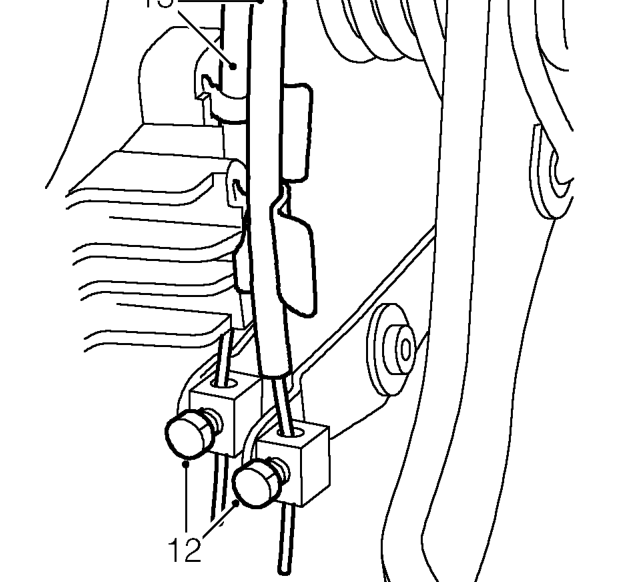

  1. Loosen screws securing heater control inner cables to levers on heater.
  2. Release both outer cables from abutments and disconnect cables.
