Rover 800 Workshop Manual (1996-1999)22 · Body
22 · Body & interior

All models (page 2 of 3)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
BodyAll models · page 2 of 3
Diagram

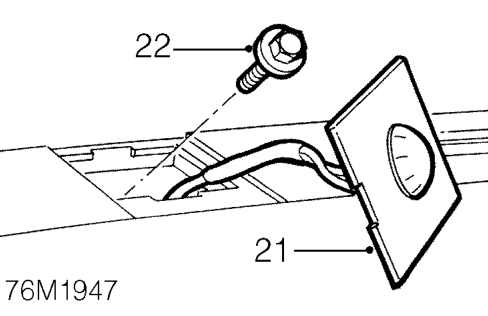

  1. Release sun light sensor from top of fascia.

NOTE: On models without air conditioning remove access panel.

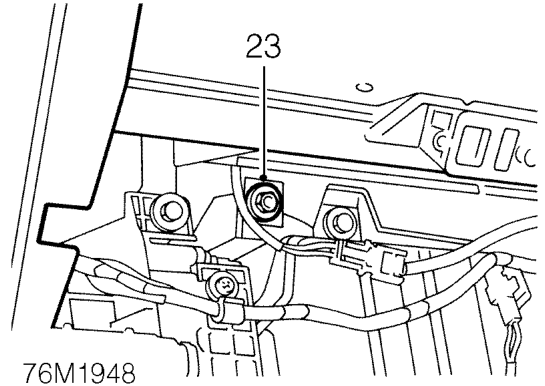

  1. Remove bolt securing top of fascia.
Remove bolt securing top of fascia.

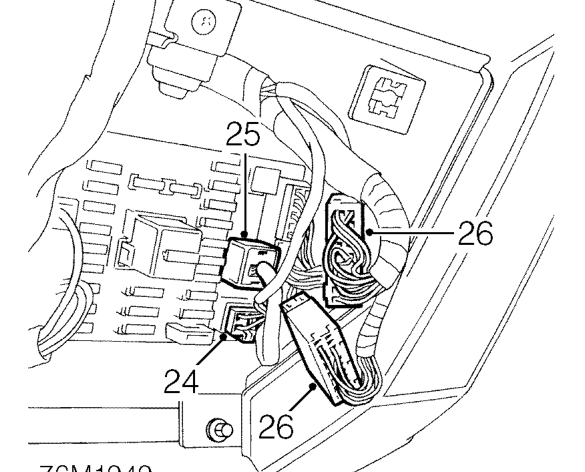

  1. Remove bolt securing fascia behind glove box aperture.
Remove bolt securing fascia behind glove box aperture.

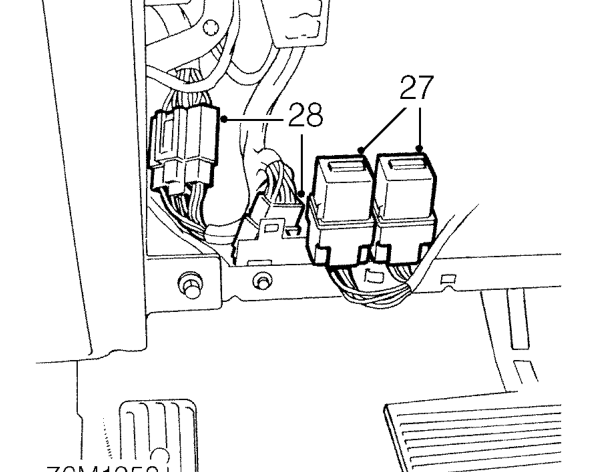

  1. Disconnect fascia harness multiplug from fusebox.
  2. Release SRS harness multiplug cover and disconnect multiplug from fusebox.
  3. Disconnect 2 fascia harness to main harness multiplugs.
Disconnect 2 fascia harness to main harness multiplugs.
  1. Release relays from fascia rail.
  2. Disconnect 2 air conditioning harness multiplugs.

NOTE: Models without air conditioning only have one multiplug.
