Heater distribution and blend unit components (Air conditioning)
- Make
- Rover
- Model
- 800 Workshop Manual
- Year
- 1996–1999
- Section
- Description and operation › Heater distribution and blend unit components
Air conditioningHeater distribution and blend unit components

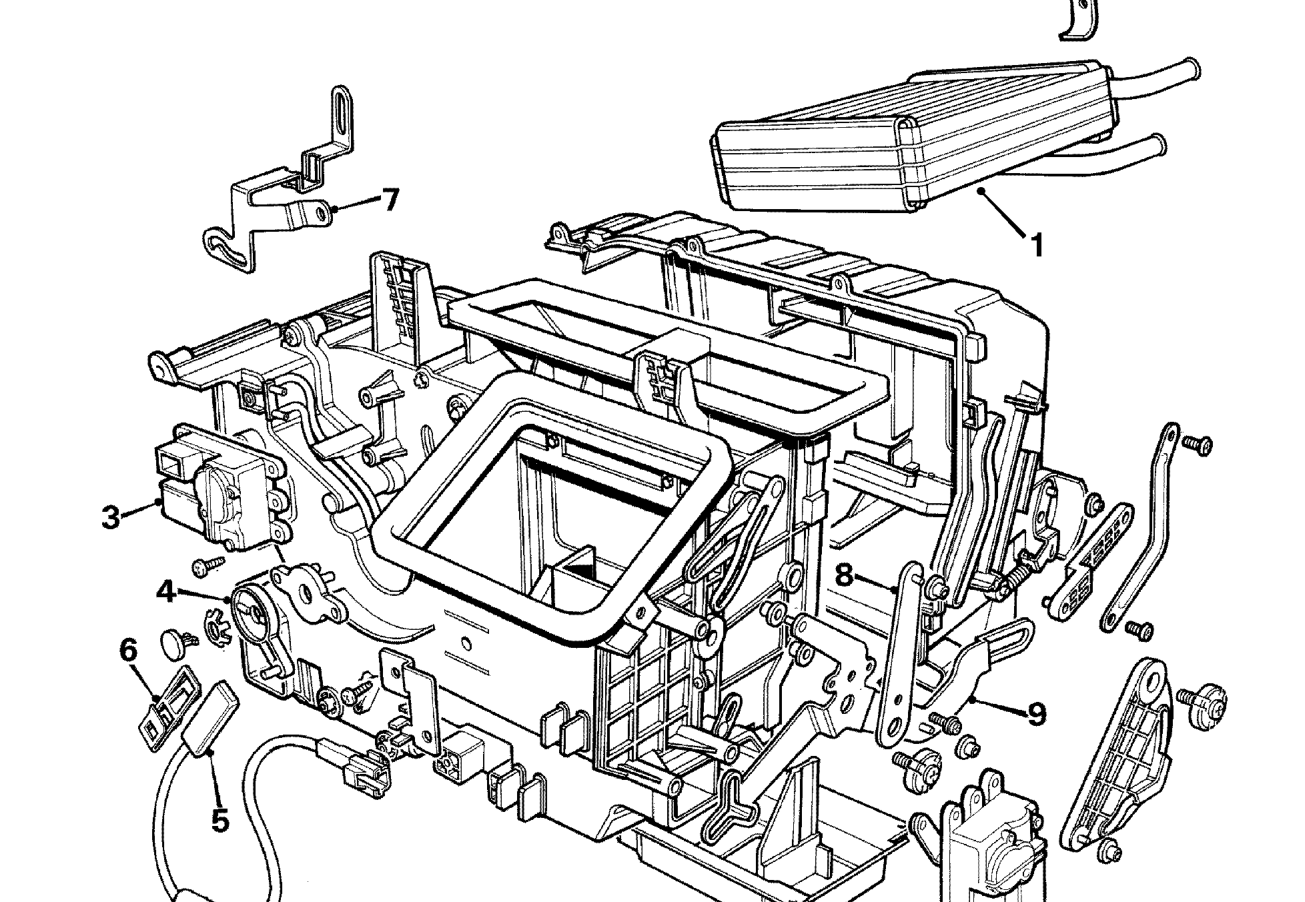

HEATER DISTRIBUTION AND BLEND UNIT COMPONENTS
- Heater matrix
- Heater air distribution mode motor
- Heater control mode motor
- Coolant control vacuum switch
- Heater matrix temperature thermistor
- Thermistor clip
- Air mode lever
- Air mode plate
- Vent mode lever
