Air conditioning system
- Make
- Rover
- Model
- 800 Workshop Manual
- Year
- 1996–1999
- Section
- Description and operation › Air conditioning system
Air conditioningAir conditioning system
AIR CONDITIONING SYSTEM

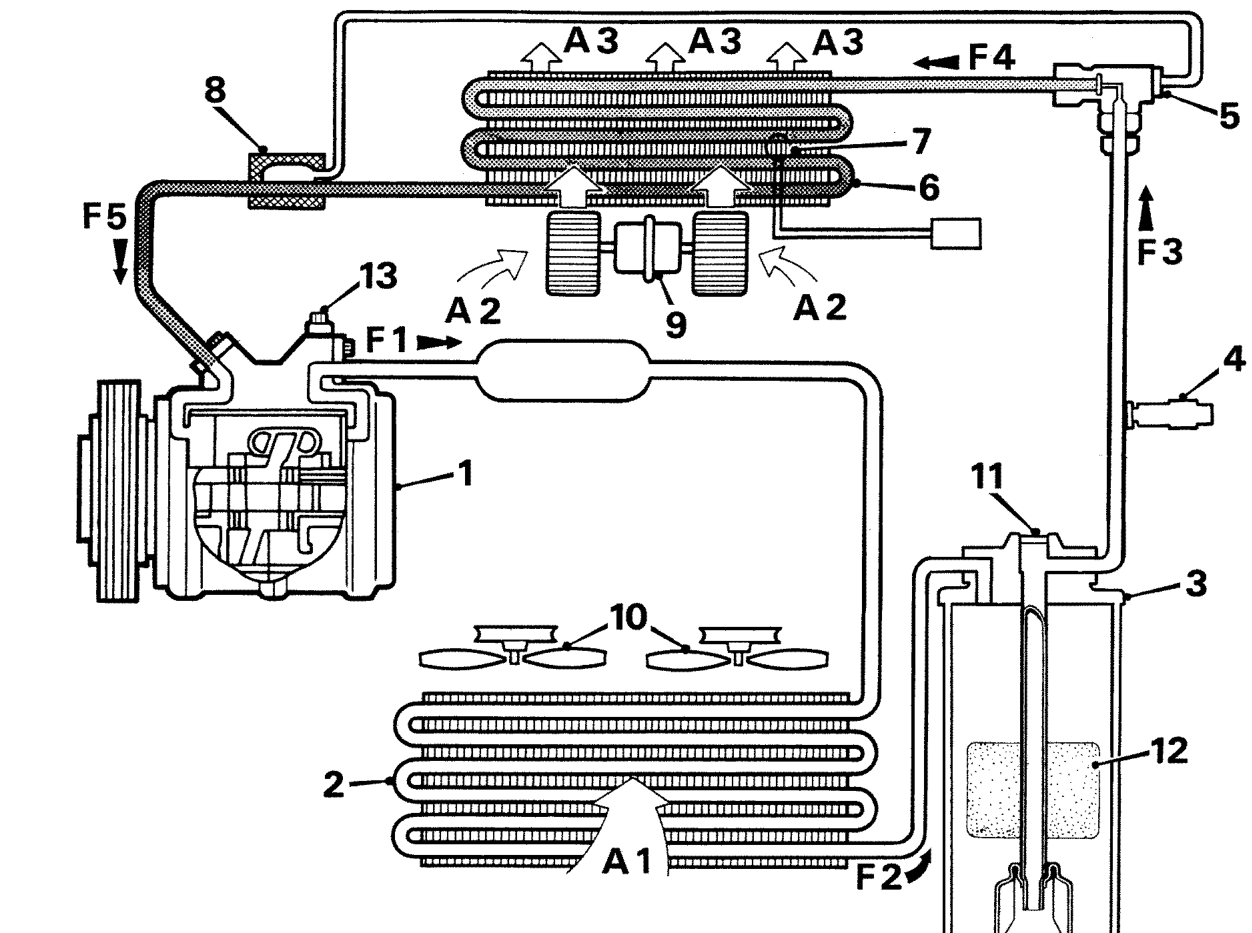

SCHEMATIC LAYOUT OF THE AIR CONDITIONING SYSTEM
- Compressor
- Condenser
- Receiver/drier
- Trinary pressure switch
- Thermostatic expansion valve
- Evaporator
- Low temperature sensor - evaporator
- Low temperature sensor - low pressure pipe
- Blower motor
- Cooling fans to increase air flow
- Sight glass
- Drying agent
- High pressure relief valve - compressor
A1. Air flow through condenser A2. Air flow through blower and evaporator A3. Air flow to vehicle interior F1. High pressure high temperature refrigerant vapour F2. High pressure slightly subcooled refrigerant liquid F3. High pressure slightly subcooled refrigerant liquid with moisture, vapour bubbles and foreign matter removed F4. Low pressure low temperature mixed liquid and vapour refrigerant F5. Low pressure slightly superheated refrigerant vapour
