BrakesFront brake caliper components

FRONT BRAKE CALIPER COMPONENTS

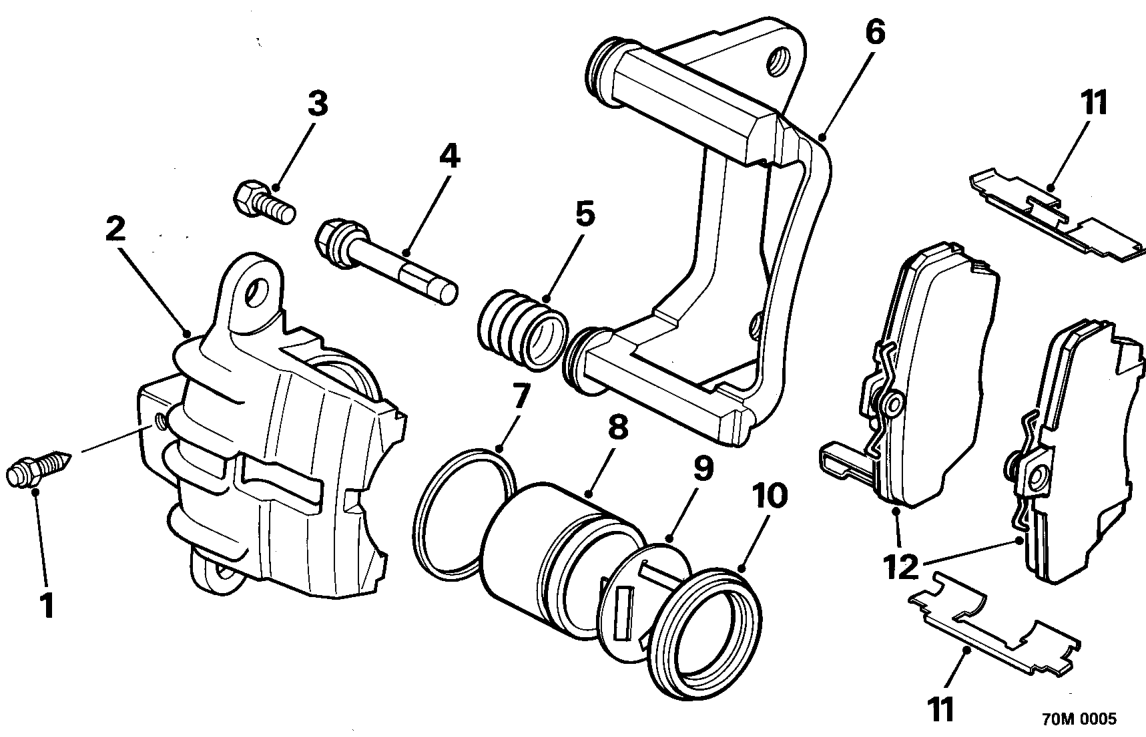

Front brake caliper components
  1. Bleed screw
  2. Caliper body - LH position shown
  3. Guide pin bolt
  4. Guide pin
  5. Boot
  6. Caliper carrier
  7. Piston seal
  8. Piston
  9. Shim
  10. Dust cover
  11. Shim
  12. Pads and shims
