Anti-roll bar

Refit

1. Thoroughly clean front hub and drive flange.

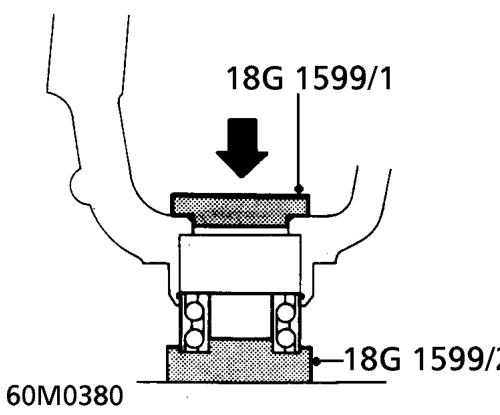

2. Position front hub beneath press.

3. Locate new bearing on tool 18G 1599/1.
4. Fit tool 18G 1599/2 to front hub and carefully press hub onto new bearing.
5. Fit circlip securing bearing in hub.
6. Fit brake disc shield to front hub.
7. Fit 3 screws securing brake disc shield to front hub and tighten to 5 Nm.

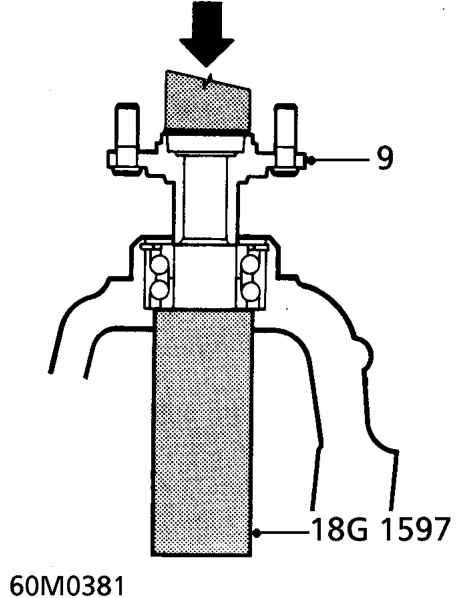

8. Support front hub on tool 18G 1597.
9. Press drive flange into front hub.
10. Fit front hub. See this section.
11. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
12. Remove stand(s) and lower vehicle.

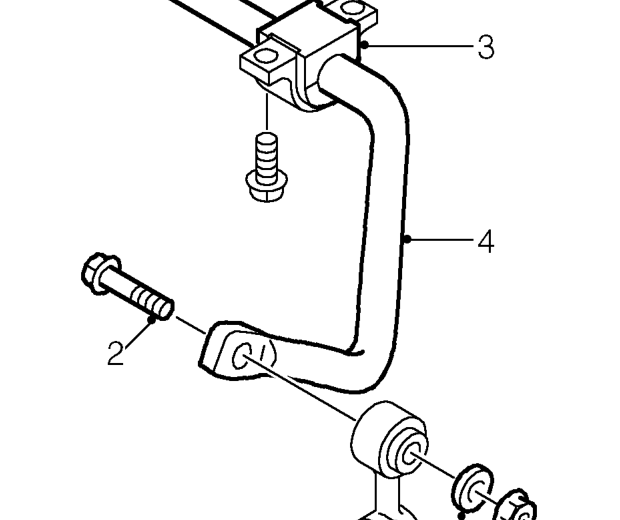

ANTI-ROLL BAR

Service repair no - 60.10.01

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Remove bolts securing anti-roll bar to anti-roll bar links and collect nuts and washers.
3. Remove anti-roll bar bushes. See this section.
4. Remove anti-roll bar.

Refit

1. Fit anti-roll bar.
2. Fit anti-roll bar bushes. See this section.
3. Fit bolts, nuts and washers securing anti-roll bar to anti-roll bar links and tighten bolts to 110 Nm.
4. Remove stand(s) and lower vehicle.
