FRONT BEAM

Service repair no - 60.35.21

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove both front tie rods. See this section.
Front beam – Remove both front tie rods. See this section.
  1. Remove 4 bolts securing front beam to body.
  2. Remove front beam.

Refit

  1. Clean mating faces of front beam and body.
  2. Position front beam to body.
  3. Fit 4 bolts securing front beam to body and tighten to 100 Nm.
  4. Fit both front tie rods. See this section.
  5. Remove stand(s) and lower vehicle.

REAR BEAM

Service repair no - 60.35.23

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Remove exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  3. Remove steering rack. See STEERING, Repairs.

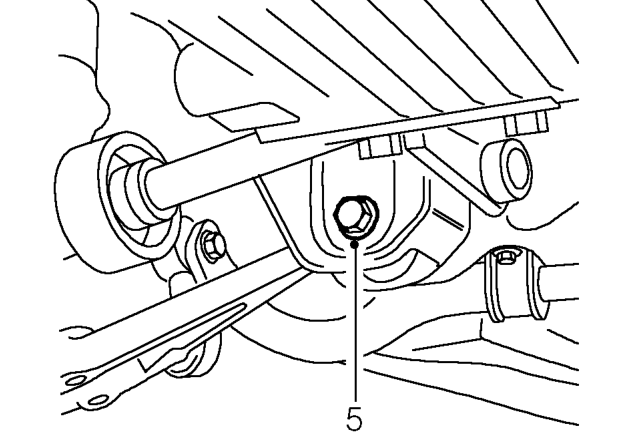

Rear beam – Remove steering rack. See STEERING, Repairs.
  1. Remove 2 bolts securing both lower arms to rear beam.
