Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement17 · Front suspension
17 · Steering & suspension

Front hub

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Front hub
Front suspensionFront hub · page 1 of 2

FRONT HUB

Service repair no - 60.25.01

Remove

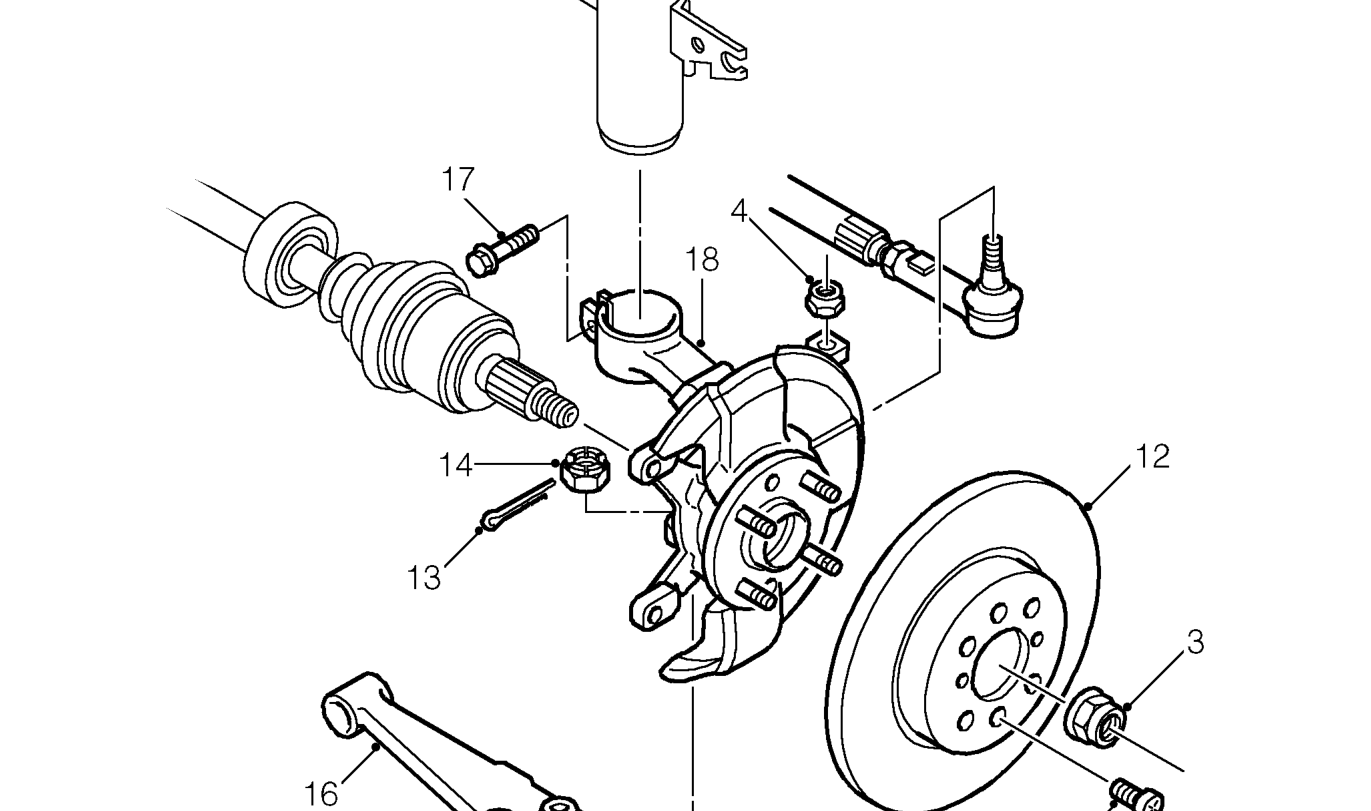

Front hub – Service repair no - 60.25.01
  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove front road wheel.
  2. Remove and discard drive shaft nut.
  3. Remove nut securing track rod end to front hub.
