Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement17 · Front suspension
17 · Steering & suspension

Front beam (page 2 of 4)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Front suspensionFront beam · page 2 of 4
Diagram

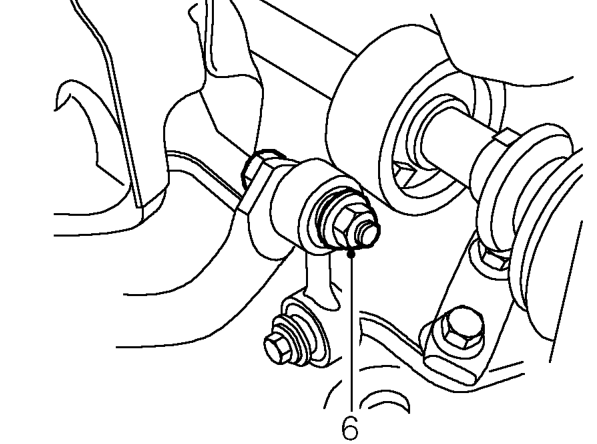

  1. Remove 2 bolts securing both anti-roll bar links to anti-roll bar.
Remove 2 bolts securing both anti-roll bar links to anti-roll bar.

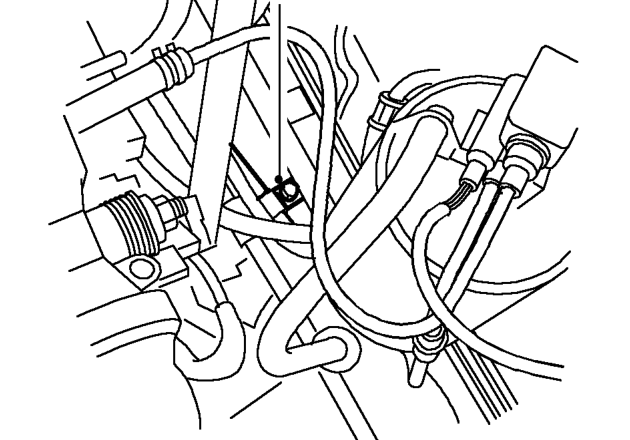

  1. Remove bolt securing power steering pipe to rear beam.
Remove bolt securing power steering pipe to rear beam.

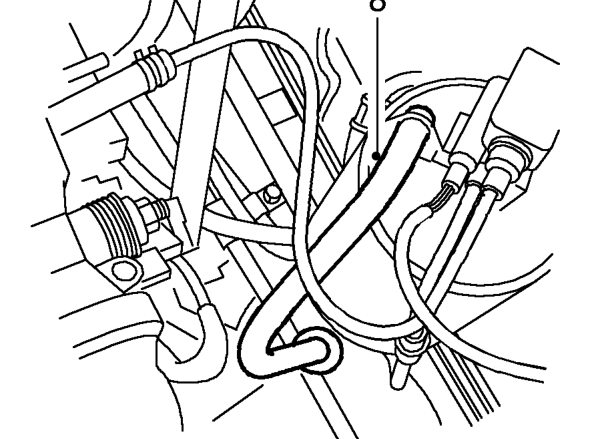

  1. Release evaporative emission canister vent hose from rear beam.
Release evaporative emission canister vent hose from rear beam.

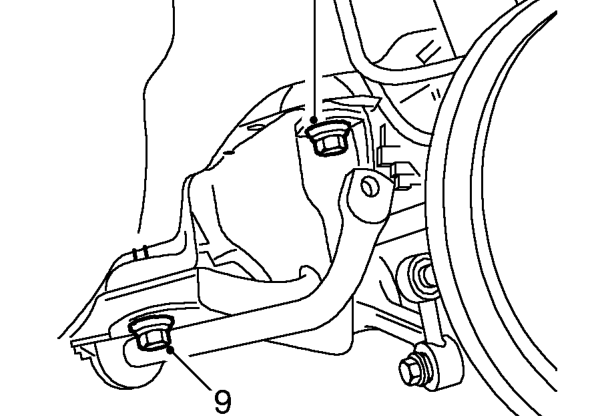

  1. Loosen 4 bolts securing rear beam to body.
