Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement14 · Manual gearbox - PG1
14 · Transmission

Models with ABS (page 2 of 3)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Manual gearbox - PG1Models with ABS · page 2 of 3
Diagram

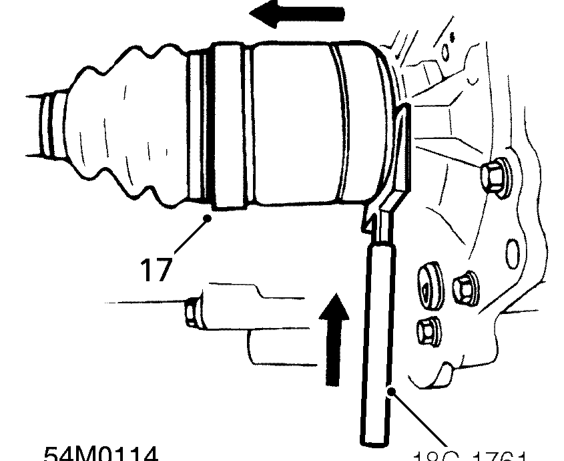

  1. With an assistant carefully pulling hub assembly outwards, use tool 18G 1761, to release drive shaft from differential.

CAUTION: Pull drive shaft horizontally to avoid damaging differential oil seal.

  1. Remove drive shaft and front hub assembly.
Remove drive shaft and front hub assembly.

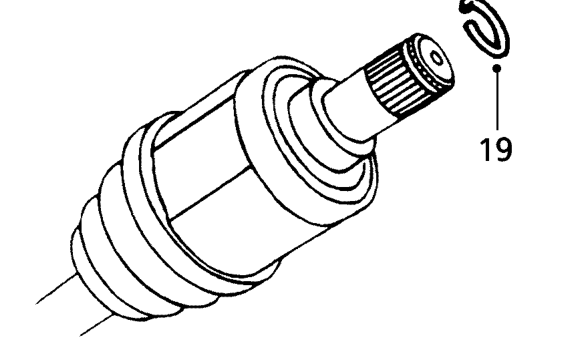

  1. Remove and discard circlip from drive shaft.
Remove and discard circlip from drive shaft.

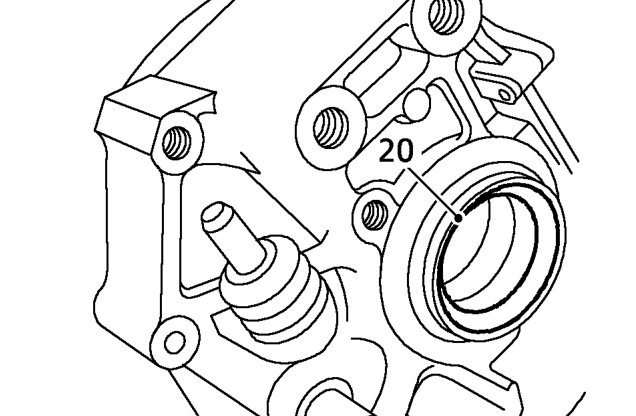

  1. Carefully prise oil seal out of differential housing and discard oil seal.
