ATMOSPHERIC PRESSURE (PA) SENSOR

Service Repair No. 18.30.58

Remove

  1. Disconnect battery earth lead.

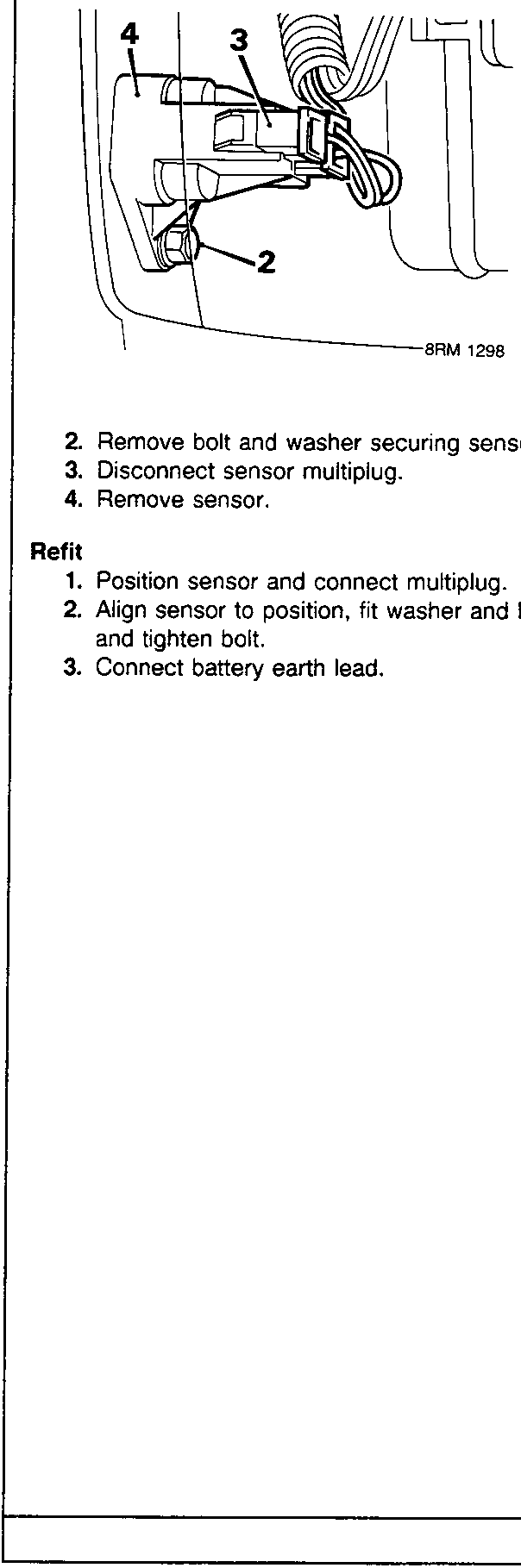

Diagram showing atmospheric pressure sensor location with callout numbers 2, 3, and 4
  1. Remove bolt and washer securing sensor.
  2. Disconnect sensor multiplug.
  3. Remove sensor.

Refit

  1. Position sensor and connect multiplug.
  2. Align sensor to position, fit washer and bolt and tighten bolt.
  3. Connect battery earth lead.

OXYGEN SENSOR – CATALYST EQUIPPED ENGINE

Service Repair No. 19.22.16

Remove

  1. Disconnect battery earth lead.

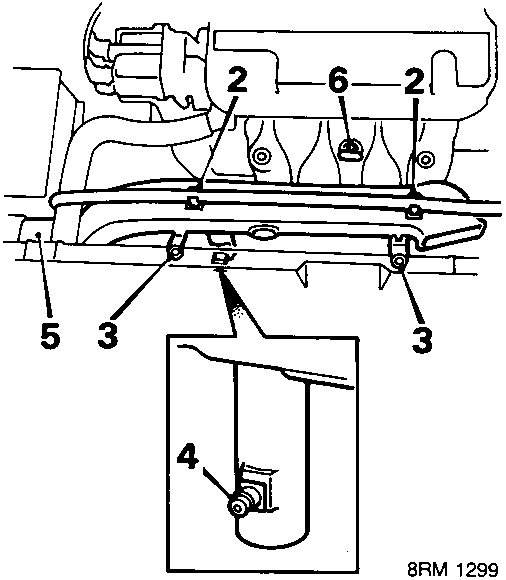

Diagram showing oxygen sensor location with callout numbers 2, 3, 4, 5, and 6
  1. Release expansion tank hose from 2 air intake clips.
  2. Remove 2 bolts securing intake to bonnet platform.
  3. Release intake appendix from fan cowl.
  4. Release intake from air cleaner intake elbow and place aside.
  5. Remove dipstick.
