Engine coolant temperature (tw) sensor

Refit

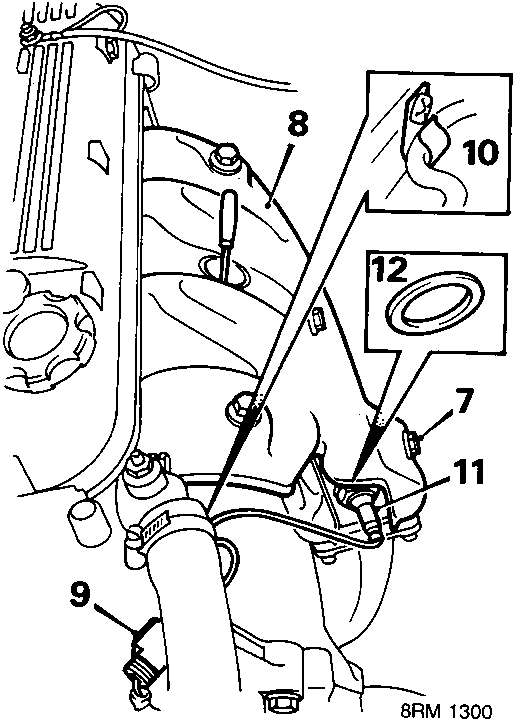

1. Clean and fit sealing washer to sensor.
2. Fit oxygen sensor and tighten to 45 Nm.
3. Secure sensor lead to clip and connect sensor multiplug.

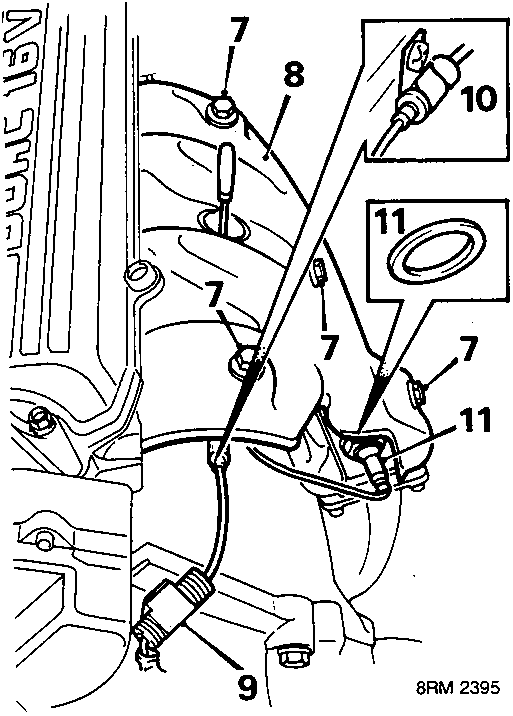

4. Position manifold heatshield, fit and tighten 4 screws.
5. Fit dipstick.
6. Connect air intake to air cleaner inlet elbow.
7. Secure intake appendix to fan cowl.
8. Align intake to bonnet platform, fit and tighten 2 bolts.
9. Connect expansion tank hose to air intake.
10. Connect battery earth lead.

ENGINE COOLANT TEMPERATURE (TW) SENSOR

Service Repair No. 18.30.59

Remove

1. Disconnect battery earth lead.
2. Position drain tray below sensor.

S.O.H.C.

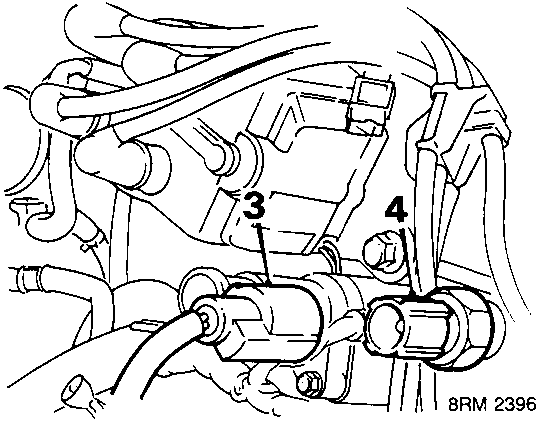

D.O.H.C.

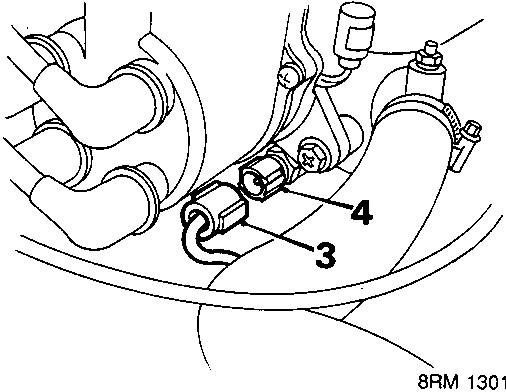

3. Disconnect sensor multiplug.
4. Remove sensor.

Refit

1. Clean sensor.
2. Fit and tighten sensor.
3. Connect multiplug.
