Repairs › Resonator – air intake
Engine management system - PGM-FiResonator – air intake

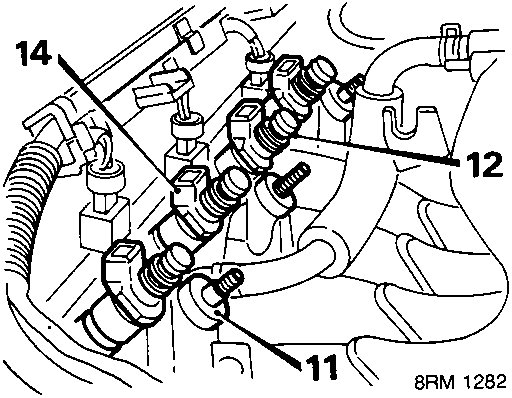

  1. Lubricate 'O' rings with engine oil and fit to injectors.

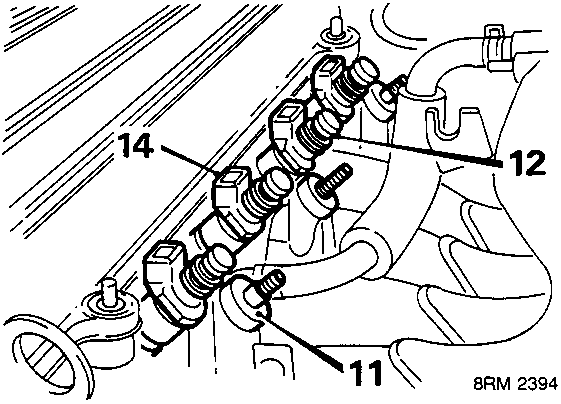

  2. Fit injector(s) to fuel rail.
  3. Clean and fit fuel rail spacers.
  4. Position the injectors and fuel rail in manifold, fit and tighten 3 nuts to 10 Nm.

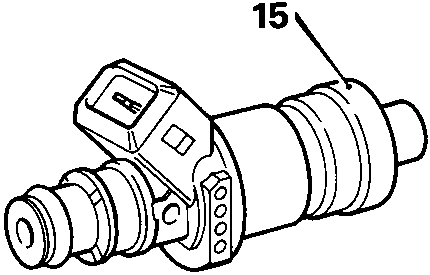

Fuel injector component labeled number 15 for engine system
Engine valve cover removal diagram with labeled components

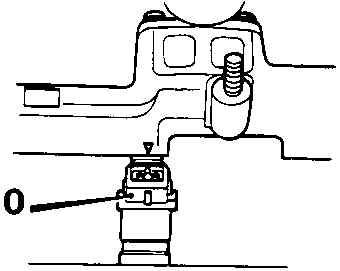

Diagram showing throttle cable secured to manifold bracket with callout number 10
  1. Secure throttle cable to manifold bracket and connect 4 injector multiplugs.

CAUTION: Align the centre line on each multiplug with mark on fuel rail before connection.

  1. Position harness holder to fuel rail, fit and tighten 2 nuts to 10 Nm.
  2. Connect battery earth lead.

RESONATOR – AIR INTAKE

Service Repair No. 17.30.32

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove front bumper, see BODY – Repairs.
Engine valve train components with labeled parts for assembly or repair

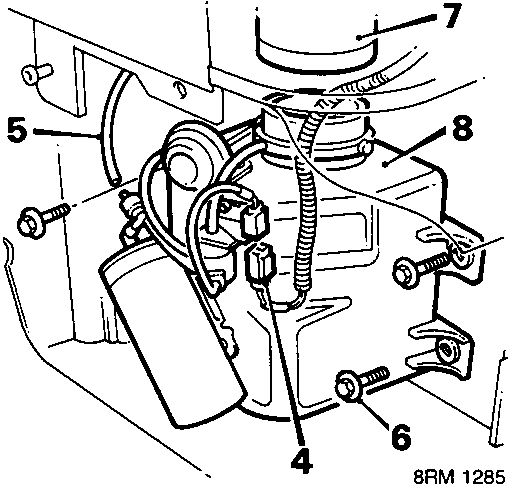

Diagram showing resonator assembly with callout numbers 4, 5, 6, 7, 8
  1. Disconnect multiplug.
  2. Disconnect vacuum hose.
  3. Remove 3 bolts securing resonator to valance.
  4. Release resonator from intake pipe.
