IGNITION COIL

Service Repair No. 18.20.32

Remove

  1. Remove distributor cap.

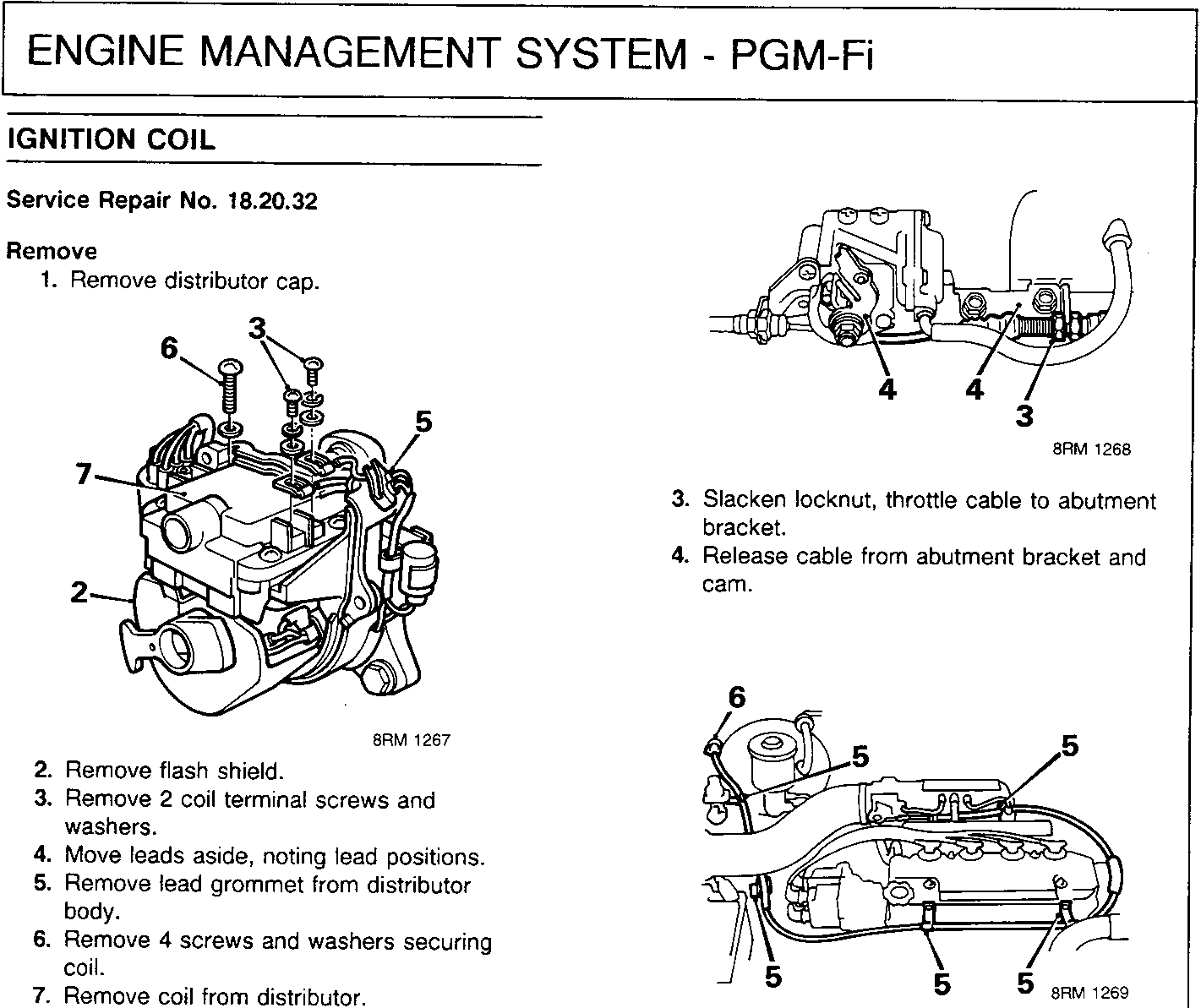

Distributor assembly showing ignition coil, leads, and mounting screws
  1. Remove flash shield.
  2. Remove 2 coil terminal screws and washers.
  3. Move leads aside, noting lead positions.
  4. Remove lead grommet from distributor body.
  5. Remove 4 screws and washers securing coil.
  6. Remove coil from distributor.
  1. Slacken locknut, throttle cable to abutment bracket.
  2. Release cable from abutment bracket and cam.

Refit

  1. Position coil, fit washers and screws and tighten 4 screws.
  2. Identify and position 2 coil lead terminals.
  3. Fit 2 terminal screws and washers and tighten screws.
  4. Insert lead grommet into distributor body and fit flash shield.
  5. Fit distributor cap.

THROTTLE CABLE

Service Repair No. 19.20.06

Remove

  1. Disconnect battery earth lead.
  2. R.H.D. models only: Remove windscreen wiper motor from bulkhead, see WIPERS & WASHERS – Repairs.

S.O.H.C.

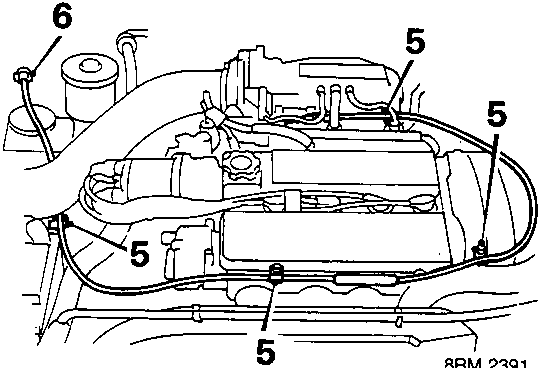

  1. Release outer cable from 5 clips.
  2. Rotate cable turnbuckle anti-clockwise (1/4 turn) to release outer cable from bulkhead.

D.O.H.C.

Engine cooling system components layout diagram
