Engine management system - PGM-FiRefit

7. Manual gearbox only: Remove clip from pedal mounting bracket and release cable from throttle pedal.

8. Automatic gearbox only: Pull cable attachment bracket upwards and release cable.

9. Remove cable.

Refit

  1. Position cable in vehicle.
  2. Insert cable turnbuckle into bulkhead aperture and rotate clockwise (1/4 turn) to secure outer cable to bulkhead.
  3. Manual gearbox only: Connect cable to pedal and fit clip to bracket.
  4. Automatic gearbox only: Pull cable attachment bracket upwards and connect cable.
  5. Connect cable to throttle cam and abutment bracket.
  6. Secure outer cable to 5 clips.
  7. Adjust throttle cable, see Adjustments.
  8. R.H.D. models only: Fit windscreen wiper motor to bulkhead , see WIPERS AND WASHERS – Repairs.
  9. Connect battery earth lead.

THROTTLE HOUSING

Service Repair No. 19.22.45

Remove

  1. Disconnect battery earth lead.
Illustrates removal of windshield wiper motor assembly

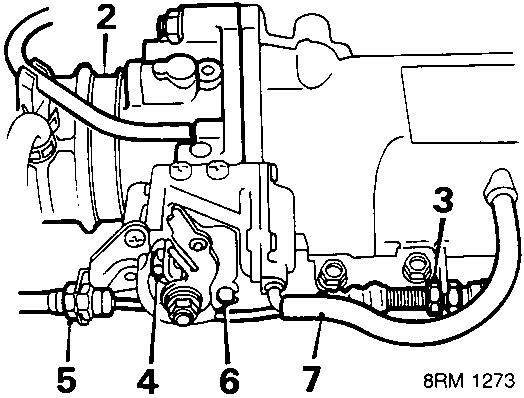

Diagram of throttle housing showing numbered components 2, 3, 4, 5, 6, 7
  1. Slacken air intake hose securing clip and disconnect hose from throttle housing.
  2. Slacken throttle cable locknut.
  3. Release cable trunnion from cam.
  4. Automatic gearbox only: Slacken throttle control cable locknut and release cable from abutment bracket.
  5. Automatic gearbox only: Release throttle control cable trunnion from cam.
  6. Disconnect dashpot diaphragm vacuum hose.
Illustrates removal of steering column shift lock cylinder

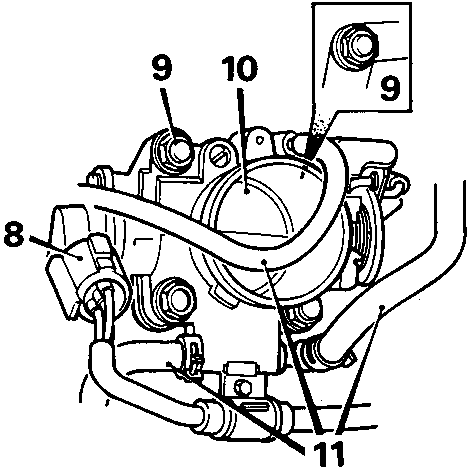

Diagram of throttle housing showing numbered components 8, 9, 10, 11
  1. Disconnect throttle potentiometer multiplug.
  2. Remove 3 nuts and 1 bolt securing throttle housing.
  3. Release throttle housing from studs.
  4. Position a drain tray below the throttle body. Release clips and disconnect 3 coolant hoses from housing.
  5. Remove housing and gasket.
