Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual08 · Engine management system - PGM-Fi
08 · Engine

Fuel relay

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Fuel relay
Engine management system - PGM-FiFuel relay

FUEL RELAY

Service Repair No. 19.22.10

Remove

  1. Disconnect battery earth lead.
  2. Remove front console, see BODY – Repairs.

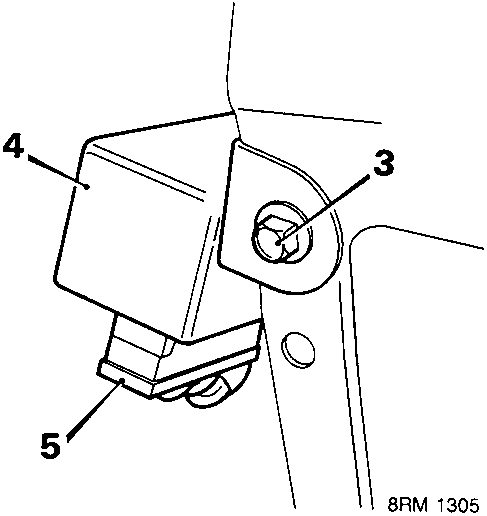

Diagram showing relay and bracket assembly secured by screw (3) with multiplug (5) and bracket (4)
  1. Remove screw and washer securing relay and bracket assembly to fascia support rail.
  2. Release assembly from rail.
  3. Disconnect multiplug.
  4. Remove relay and bracket assembly.
  5. Remove bracket from relay.
  6. Remove relay.

Refit

  1. Fit bracket to relay.
  2. Connect multiplug and position relay and bracket assembly to support rail.
  3. Fit and tighten screw and washer.
  4. Refit front console, see BODY – Repairs.
  5. Connect battery earth lead.

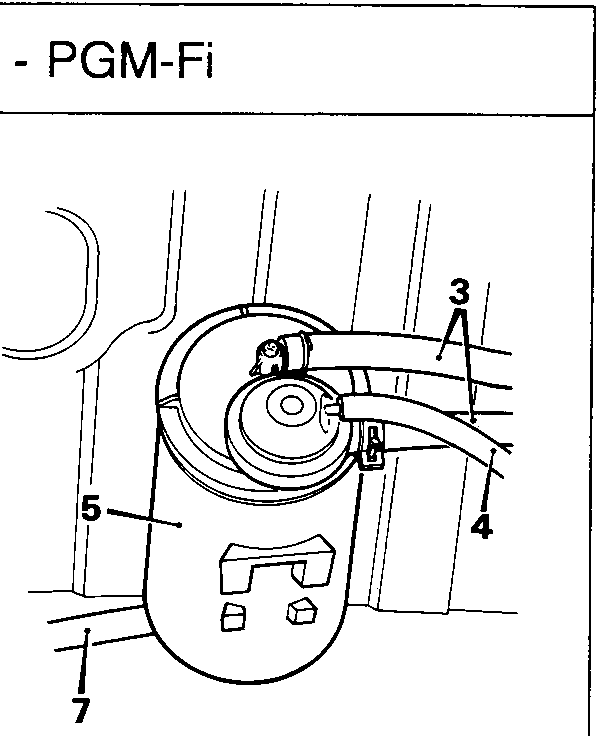

Diagram showing charcoal canister with vent hoses (3), purge control diaphragm valve hose (4), body clip (5), drain hose (7) and canister (4)
  1. Release clips and disconnect 2 canister vent hoses.
  2. Disconnect purge control diaphragm valve hose.
  3. Release canister from body clip.
  4. Remove canister.
  5. Remove canister drain hose.

Refit

  1. Fit drain hose to canister and position canister.
  2. Secure canister into body clip.
  3. Connect 2 vent hoses and secure hose clips.
  4. Connect hose to purge control diaphragm valve.
  5. L.H.D. models only: Position and secure screen washer reservoir to bulkhead , see WIPERS AND WASHERS – Repairs.
  6. Connect battery earth lead.

CHARCOAL CANISTER – CATALYST EQUIPPED ENGINE

Service Repair No. 17.15.13

Remove

  1. Disconnect battery earth lead.
  2. L.H.D. models only: Release washer reservoir from bulkhead and move aside, see WIPERS AND WASHERS – Repairs.
