Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual08 · Engine management system - PGM-Fi
08 · Engine

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
Engine management system - PGM-FiRemove

Service Repair No. 19.22.57

Remove

  1. Disconnect battery earth lead.

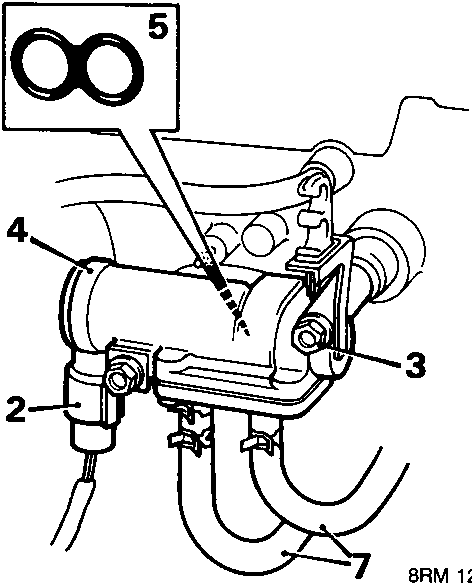

Diagram of the electronic air control valve showing numbered components including multiplug, bolts, O ring, drain tray, clips, hoses, and the valve itself.
  1. Disconnect multiplug.
  2. Remove 2 bolts securing valve to manifold.
  3. Release valve.
  4. Remove 'O' ring.
  5. Position drain tray below valve.
  6. Compress 2 clips and release 2 hoses from valve.
  7. Remove valve.

Refit

  1. Clean mating faces.
  2. Position valve.
  3. Compress clips and fit 2 hoses to valve.
  4. Lubricate 'O' ring with engine oil and fit to valve.
  5. Align valve to manifold, fit and tighten 2 bolts.
  6. Connect multiplug.
  7. Top – up cooling system, see MAINTENANCE.
  8. Connect battery earth lead.

PRESSURE REGULATOR

Service Repair No. 19.45.06

Remove

  1. Disconnect battery earth lead.

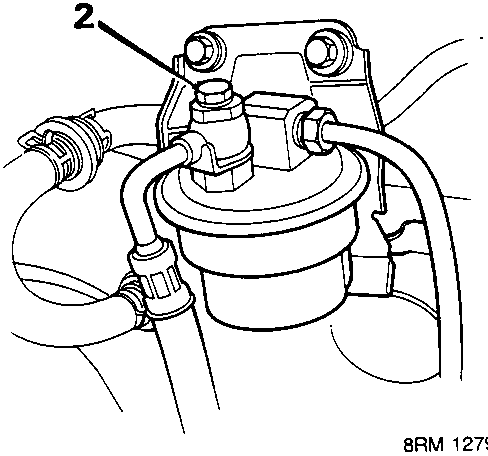

Diagram of the pressure regulator showing a sealing bolt being slackened to relieve fuel pressure.
  1. Position absorbent cloth around sealing bolt. Slacken bolt to relieve fuel pressure. Retighten bolt to 12 Nm.

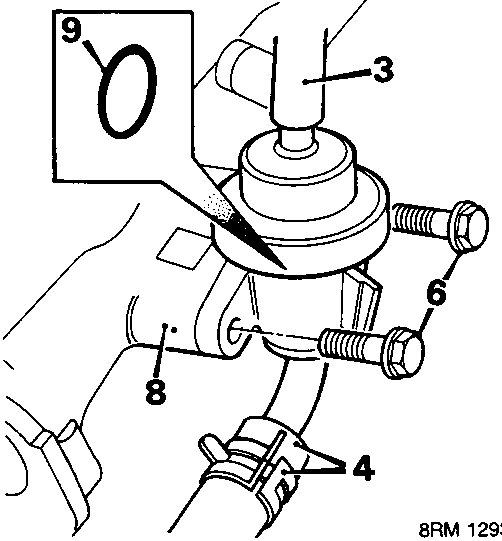

Diagram of the pressure regulator showing vacuum hose, fuel return hose, securing bolts, fuel rail, and O ring.
  1. Disconnect vacuum hose from regulator.
  2. Compress clip and disconnect fuel return hose.
  3. Plug hose.
  4. Remove 2 bolts securing regulator.
  5. Remove regulator.
  6. Plug fuel rail.
  7. Remove 'O' ring.

Refit

  1. Clean regulator.
  2. Lubricate 'O' ring with engine oil and fit to regulator.
  3. Remove plugs from fuel rail and clean fuel rail orifice.
  4. Position regulator.
