Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual08 · Engine management system - PGM-Fi
08 · Engine

Refit (page 2 of 2)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs
Engine management system - PGM-FiRefit · page 2 of 2

S.O.H.C.

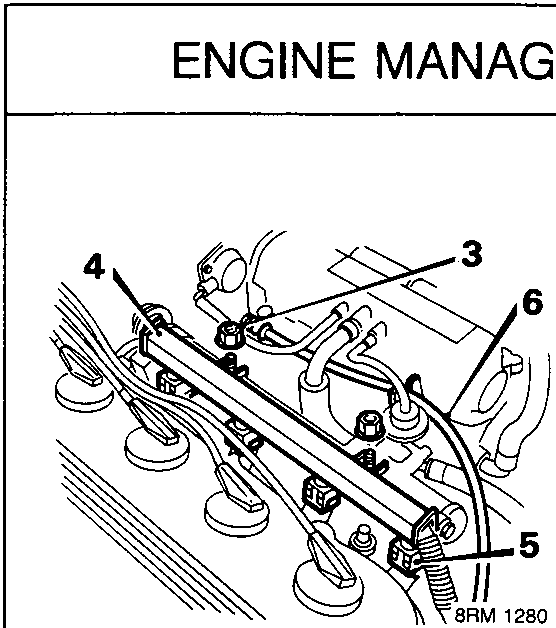

Diagram of fuel rail and harness holder with callout numbers 3, 4, 5, 6

D.O.H.C.

  1. Remove 2 nuts securing harness holder.
  2. Release holder from fuel rail.
  3. Disconnect 4 injector multiplugs.
  4. Release throttle cable from manifold bracket.
  5. Position cloth under fuel rail to absorb fuel spillage.

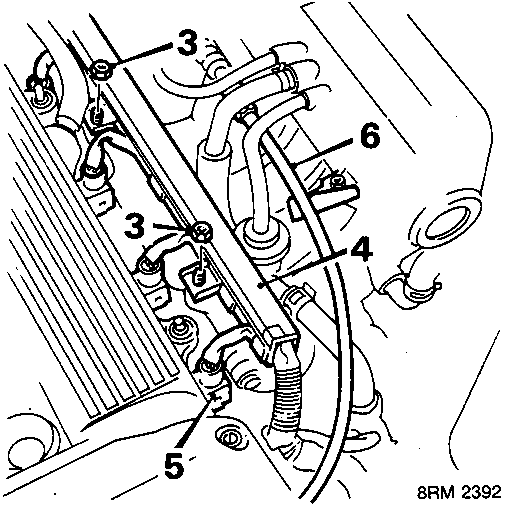

Diagram of fuel rail and harness holder for D.O.H.C. engine with callout numbers 3, 4, 5, 6

S.O.H.C.

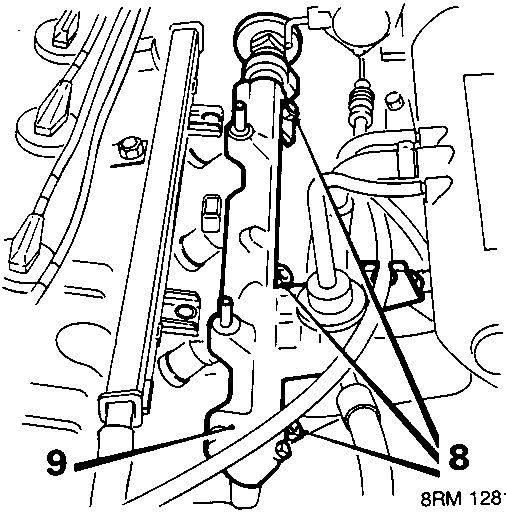

Diagram of fuel rail and injectors for S.O.H.C. engine with callout numbers 8, 9

D.O.H.C.

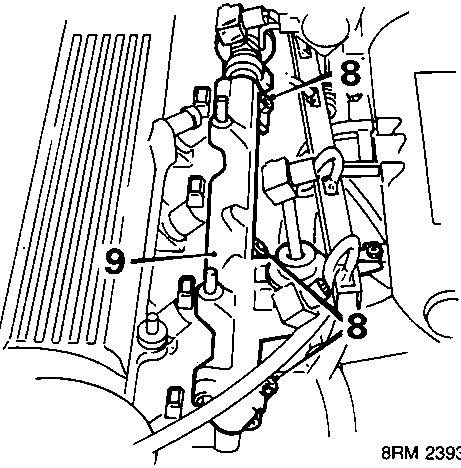

Diagram of fuel rail and injectors for D.O.H.C. engine with callout numbers 8, 9
  1. Remove 3 nuts securing fuel rail.
  2. Release rail from 4 injectors.
  3. Remove cloth.
