Vehicle electrics?Radio MP3 System?

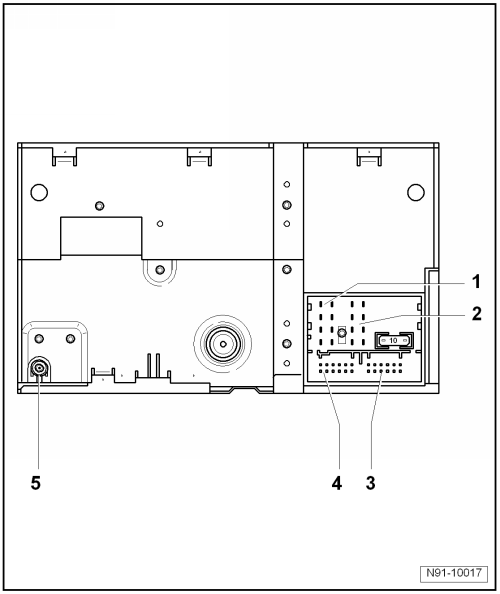

| Plug connectors on the „Radio MP3 System“ |
| 1 - | Multiple connector 1, 8 contacts, for loudspeaker outlets |
| q | Terminals layout → Chapter |
| 2 - | Multiple connector 2, 8 contacts, for current supply, CAN bus and automatic volume disconnection (telephone) |
| q | Terminals layout → Chapter |
| 3 - | Multiple connector 3, 12-pin, Telephone signal input |
| q | Terminals layout → Chapter |
| 4 - | Multiple connector 4, 12 contacts, for CD changer control and CD audio input signals |
| q | Terminals layout → Chapter |
| 5 - | Connector 5, aerial connection |
| q | Aerial cable connectors |
| q | Terminals layout → Chapter |
