Vehicle electrics3301 RDS Radio Installation

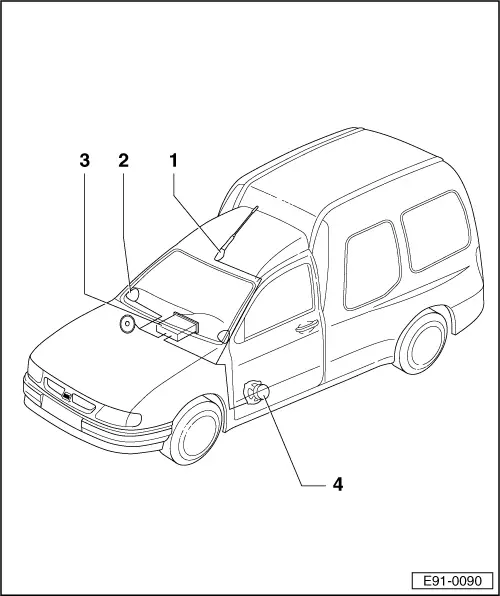

| Overview of radio systems |

| 1 - | Radio |
| q | Installed on the centre console. |
| q | Removal and installation → Chapter |
| 2 - | Threaded rod aerial |
| q | For radio only. With the anti-theft system, once screwed in it cannot be removed, only tilted. |
| q | With amplifier fitted into the aerial. |
| q | Removal and installation → Chapter |
| 3 - | Treble speaker |
| q | At the top of the dashboard trim, left and right side. |
| q | Technical data Rated resistance = 4 Ω Rated power = 20 W Range of frequencies = 2,500...20,000 Hz |
| q | Removal and installation → Chapter |
| 4 - | Bass speaker |
| q | At the bottom of the dashboard trim, left and right side. |
| q | Technical data: Rated resistance = 4 Ω Rated power = 20 W Range of frequencies = 70..70,800 Hz |
| q | Removal and installation → Chapter |
| N.B.: |
| All the speakers have the same features as their counterparts on the right and left. |
