PEDAL ASSEMBLY - R.R

Operation 3330B02 · PEDAL UNIT

Removing

- Drain the coolant.

Op. 0010T84 COOLANT FOR AIR CONDITIONING SYSTEM - DEHYDRATE AND REPRESSURIZE

- Drain the engine coolant.

Op. 0010T20 ENGINE COOLANT - CHANGE

Op. 5580C18 AIR BAG MODULE - R+R

Op. 4110A10 STEERING WHEEL - R+R FOR REPLACEMENT OR CHECKS

Op. 7040A26 STEERING COLUMN TRIM - R+R

Op. 5550A10 STALK UNIT ASSEMBLY - R+R

Op. 5560B10 CONTROL PANEL - R+R

Op. 5570T80 CAR RADIO EQUIPMENT - R+R

Op. 7040A85 R R HANDLE FOR FRONT SEAT FORE AND AFT ADJUSTMENT

Op. 7040A22 INSTRUMENT FACIA COMPLEMENTARY TRIM ELEMENT (ONE) - ARRANGE

Op. 2125C02 GEAR CONTROL LEVER OUTER GAITER R R

Op. 7040L37 GEAR LEVER TRIM - R.R

Op. 7040A47 ODDMENTS POCKET UNDER DASHBOARD - R.R.

Op. 5040D15 FOG LIGHT TRIM - R.R.

Op. 7040A14 FLAP FOR GLOVE COMPARTMENT IN DASHBOARD - R.R.

Op. 7040G22 BULB HOLDER/SWITCH FOR COMPARTMENT LIGHT IN DASHBOARD - R.R.

Op. 5570T49 BLUETOOTH ELECTRONIC CONTROL UNIT - R.R.

Op. 7040A45 RIGHT DASHBOARD SIDE TRIM - R.R.

Op. 7040L73 BOTTLE-HOLDER/ASHTRAY ON REAR TUNNEL TRIM - R.R.

Op. 7040L70 TUNNEL COVER REAR TRIM - R.R.

Op. 7040L20 TUNNEL COVER - R.R

Op. 7040A65 CONSOLE SIDE CLOSING (ONE) - R.R.

Op. 7040A18 GLOVE COMPARTMENT IN DASHBOARD - ARRANGE

Op. 7040A37 FUSE BOX COVER IN INSTRUMENT PANEL - R.R

Op. 7040A44 LEFT DASHBOARD SIDE TRIM - R.R.

Op. 7040A45 RIGHT DASHBOARD SIDE TRIM - R.R.

Op. 7040A30 LEFT LOWER DASHBOARD TRIM - R.R.

- Or, alternatively

Op. 5580C23 DRIVE SIDE KNEE PROTECTION AIR BAG MODULE R. R.

Op. 5010D56 SOLAR SENSOR - R.R FOLLOWING ELECTRICAL SYSTEM CHECK

Op. 5010C12 WINDSCREEN DEMISTER DIFFUSER - R+R

Op. 5580C22 AIR BAG MODULE - PASSENGER SIDE - R.R

Op. 7040A10 DASHBOARD TRIM - R+R

- Work on both sides.

Op. 7210E36 R.R. FRONT SIDE DOOR

Op. 7040A89 REINFORCEMENT BRACKET BETWEEN DASHBOARD SUPPORTING CROSSMEMER AND BODYSHELL - R.R.

Op. 4110D20 STEERING ELECTRICAL CONTROL DEVICE - R R

Op. 5010C32 AIR VENT ON TUNNEL COVER FOR REAR SEATS - R.R.

Op. 5010B46 CENTRAL AIR DUCT TO REAR SEATS - R.R.

Op. 5010B56 DUCT BETWEEN CLIMATE CONTROL SYSTEM HOUSING AND AIR DUCT TO REAR SEATS - R.R.

Op. 7210A74 R R FACIA SUPPORT BEAM

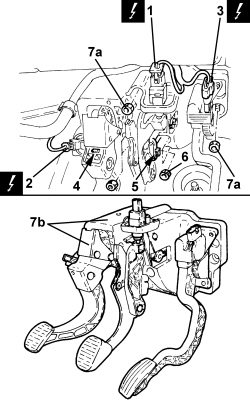

1. Disconnect the electrical connection for the brake pedal switch.

2. Disconnect the electrical connection for the clutch pedal switch.

3. Detach the electrical connection for the accelerator pedal.

- Open the retaining clips on the pedal assembly and move the wiring to one side.

4. Adjust the retaining device clip and disconnect the clutch pump push rod from the pedal.

5. Adjust the retaining device clips and disconnect the brake servo push rod from the pedal.

6. Undo the nuts fixing the brake servo to the bodyshell.

7. Undo the nuts (7a) and remove the pedal assembly (7b).

- Remove the retaining devices from the clutch pump push rod and from the brake servo push rod.

Refitting

- Fit new clutch pump push rod and brake servo push rod retaining devices to the respective pedals.

- Position the pedal assembly in its housing and secure it to the bodyshell by tightening the nuts to the recommended torque.

- Tighten the nuts fixing the brake servo to the bodyshell to the recommended torque.

- Press the clutch pedal to connect the clutch pump push rod to the retaining device.

- Press the brake pedal to connect the brake servo push rod to the retaining device.

- Place the wiring in position and close the retaining clips on the pedal assembly.

- Secure the electrical connection for the accelerator pedal.

- Connect the electrical connection for the clutch pedal switch.

- Connect the electrical connection for the brake pedal switch.

Op. 7210A74 R R FACIA SUPPORT BEAM

Op. 5010B56 DUCT BETWEEN CLIMATE CONTROL SYSTEM HOUSING AND AIR DUCT TO REAR SEATS - R.R.

Op. 5010B46 CENTRAL AIR DUCT TO REAR SEATS - R.R.

Op. 5010C32 AIR VENT ON TUNNEL COVER FOR REAR SEATS - R.R.

Op. 4110D20 STEERING ELECTRICAL CONTROL DEVICE - R R

Op. 7040A89 REINFORCEMENT BRACKET BETWEEN DASHBOARD SUPPORTING CROSSMEMER AND BODYSHELL - R.R.

Op. 7210E36 R.R. FRONT SIDE DOOR

Op. 7040A10 DASHBOARD TRIM - R+R

Op. 5580C22 AIR BAG MODULE - PASSENGER SIDE - R.R

Op. 5010C12 WINDSCREEN DEMISTER DIFFUSER - R+R

Op. 5010D56 SOLAR SENSOR - R.R FOLLOWING ELECTRICAL SYSTEM CHECK

Op. 5580C23 DRIVE SIDE KNEE PROTECTION AIR BAG MODULE R. R.

Op. 7040A30 LEFT LOWER DASHBOARD TRIM - R.R.

Op. 7040A45 RIGHT DASHBOARD SIDE TRIM - R.R.

Op. 7040A44 LEFT DASHBOARD SIDE TRIM - R.R.

Op. 7040A37 FUSE BOX COVER IN INSTRUMENT PANEL - R.R

Op. 7040A18 GLOVE COMPARTMENT IN DASHBOARD - ARRANGE

Op. 7040A65 CONSOLE SIDE CLOSING (ONE) - R.R.

Op. 7040L20 TUNNEL COVER - R.R

Op. 7040L70 TUNNEL COVER REAR TRIM - R.R.

Op. 7040L73 BOTTLE-HOLDER/ASHTRAY ON REAR TUNNEL TRIM - R.R.

Op. 7040A45 RIGHT DASHBOARD SIDE TRIM - R.R.

Op. 5570T49 BLUETOOTH ELECTRONIC CONTROL UNIT - R.R.

Op. 7040G22 BULB HOLDER/SWITCH FOR COMPARTMENT LIGHT IN DASHBOARD - R.R.

Op. 7040A14 FLAP FOR GLOVE COMPARTMENT IN DASHBOARD - R.R.

Op. 5040D15 FOG LIGHT TRIM - R.R.

Op. 7040A47 ODDMENTS POCKET UNDER DASHBOARD - R.R.

Op. 7040L37 GEAR LEVER TRIM - R.R

Op. 2125C02 GEAR CONTROL LEVER OUTER GAITER R R

Op. 7040A22 INSTRUMENT FACIA COMPLEMENTARY TRIM ELEMENT (ONE) - ARRANGE

Op. 7040A85 R R HANDLE FOR FRONT SEAT FORE AND AFT ADJUSTMENT

Op. 5570T80 CAR RADIO EQUIPMENT - R+R

Op. 5560B10 CONTROL PANEL - R+R

Op. 5550A10 STALK UNIT ASSEMBLY - R+R

Op. 7040A26 STEERING COLUMN TRIM - R+R

Op. 4110A10 STEERING WHEEL - R+R FOR REPLACEMENT OR CHECKS

Op. 5580C18 AIR BAG MODULE - R+R

- Refill the engine coolant.

Op. 0010T20 ENGINE COOLANT - CHANGE

- Repressurize the coolant.

Op. 0010T84 COOLANT FOR AIR CONDITIONING SYSTEM - DEHYDRATE AND REPRESSURIZE
