Integrated radiophone - wiring diagram

Make

Fiat

Model

Grande Punto Factory Service Manual

Year

2005–2012

Section

Radio accessories › Integrated radiophone - wiring diagram

Wiring diagrams and electrical functionsIntegrated radiophone - wiring diagram

INTEGRATED RADIOPHONE - WIRING DIAGRAM

Bluetooth

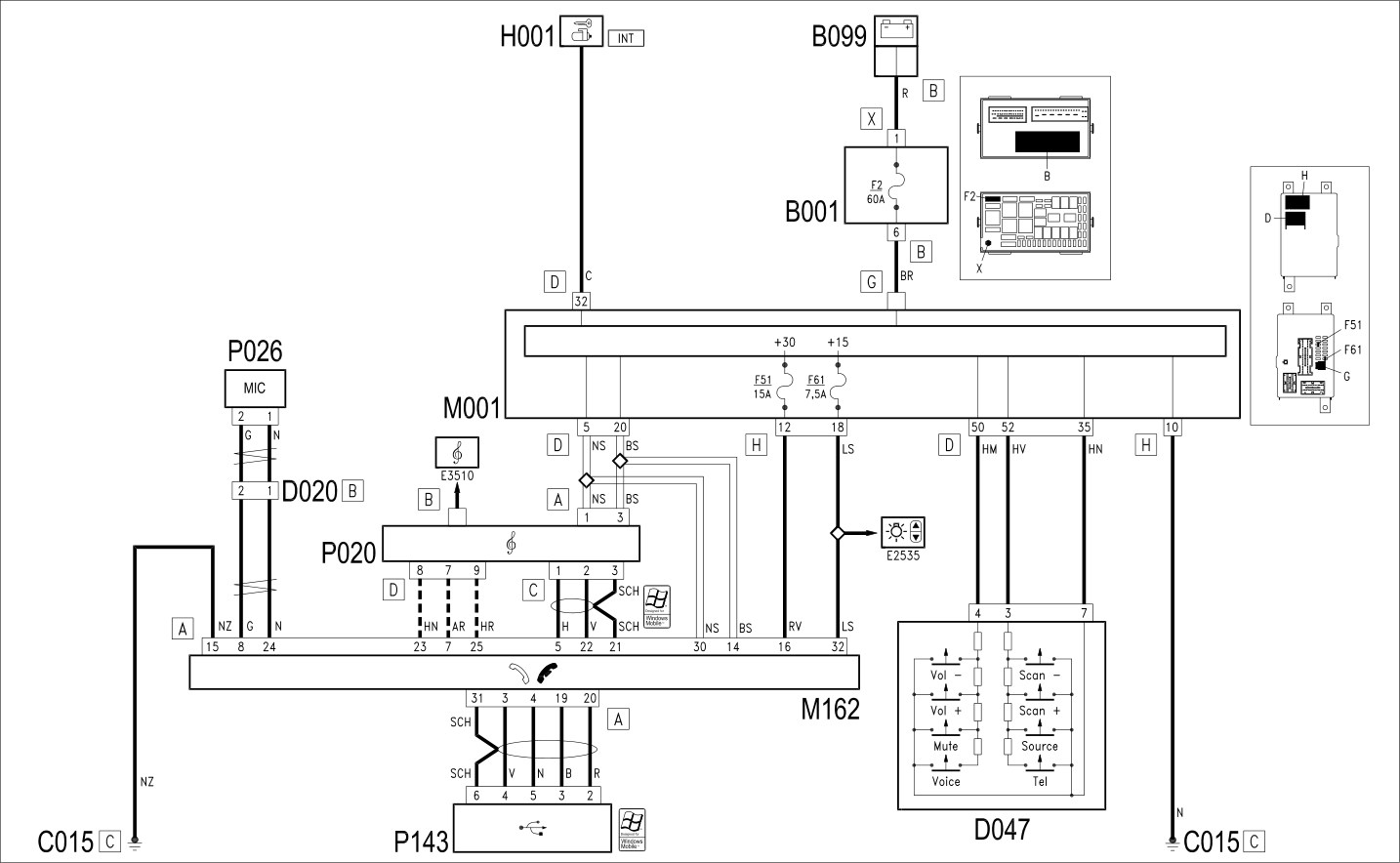

WIRING DIAGRAM

COMPONENTS

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C015	DASHBOARD EARTH, DRIVER'S SIDE
D020	DASHBOARD/REAR COUPLING
D047	CLOCK SPRING COUPLING	Op. 5580C12 CLOCK SPRING FOR AIR BAG MODULE ON STEERING WHEEL - R.R
H001	IGNITION SWITCH	Op. 5520A18 IGNITION SWITCH CONTACT CARRIER LOCK BARREL - R.R.
M001	BODY COMPUTER	Op. 5505A32 BODY COMPUTER - R.R
M162	BLUETOOTH CONTROL UNIT	Op. 5570T49 BLUETOOTH ELECTRONIC CONTROL UNIT - R.R.
P020	RADIO	Op. 5570T80 CAR RADIO EQUIPMENT - R+R
P025	AERIAL FEED/AMPLIFIER	Op. 5570T27 AERIAL SUPPORT - R.R
P026	HANDSFREE MICROPHONE
P143	USB SOCKET
